Product Info

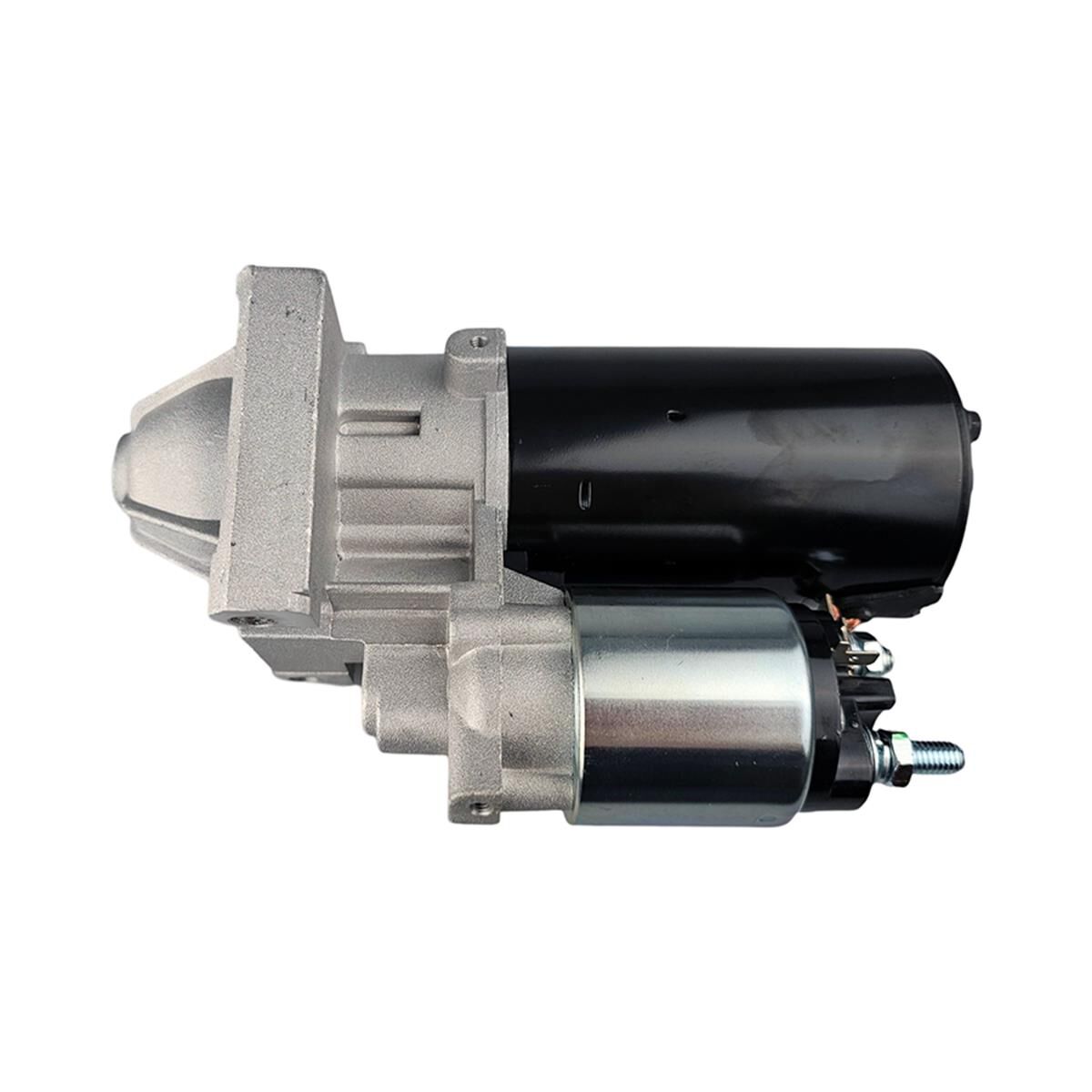

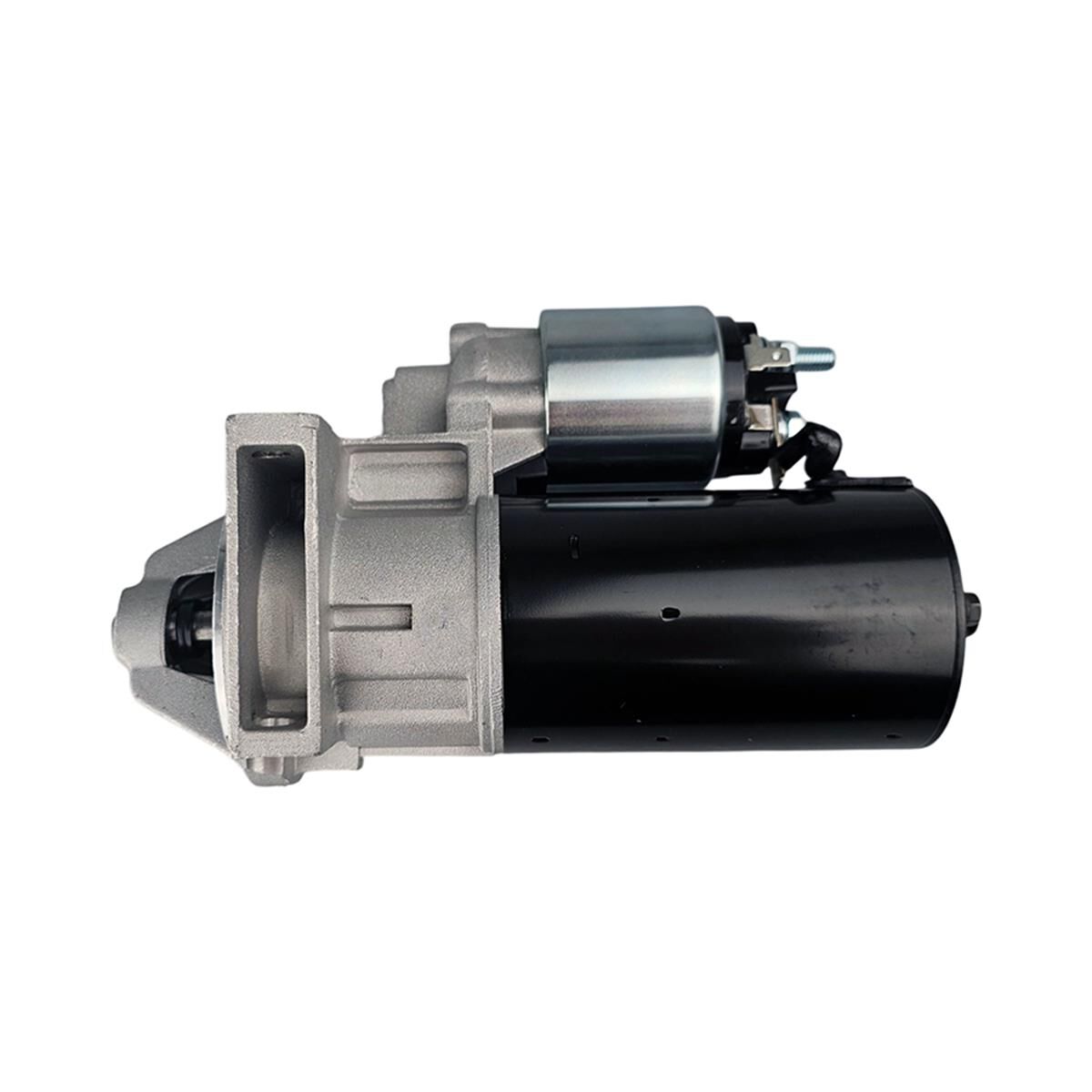

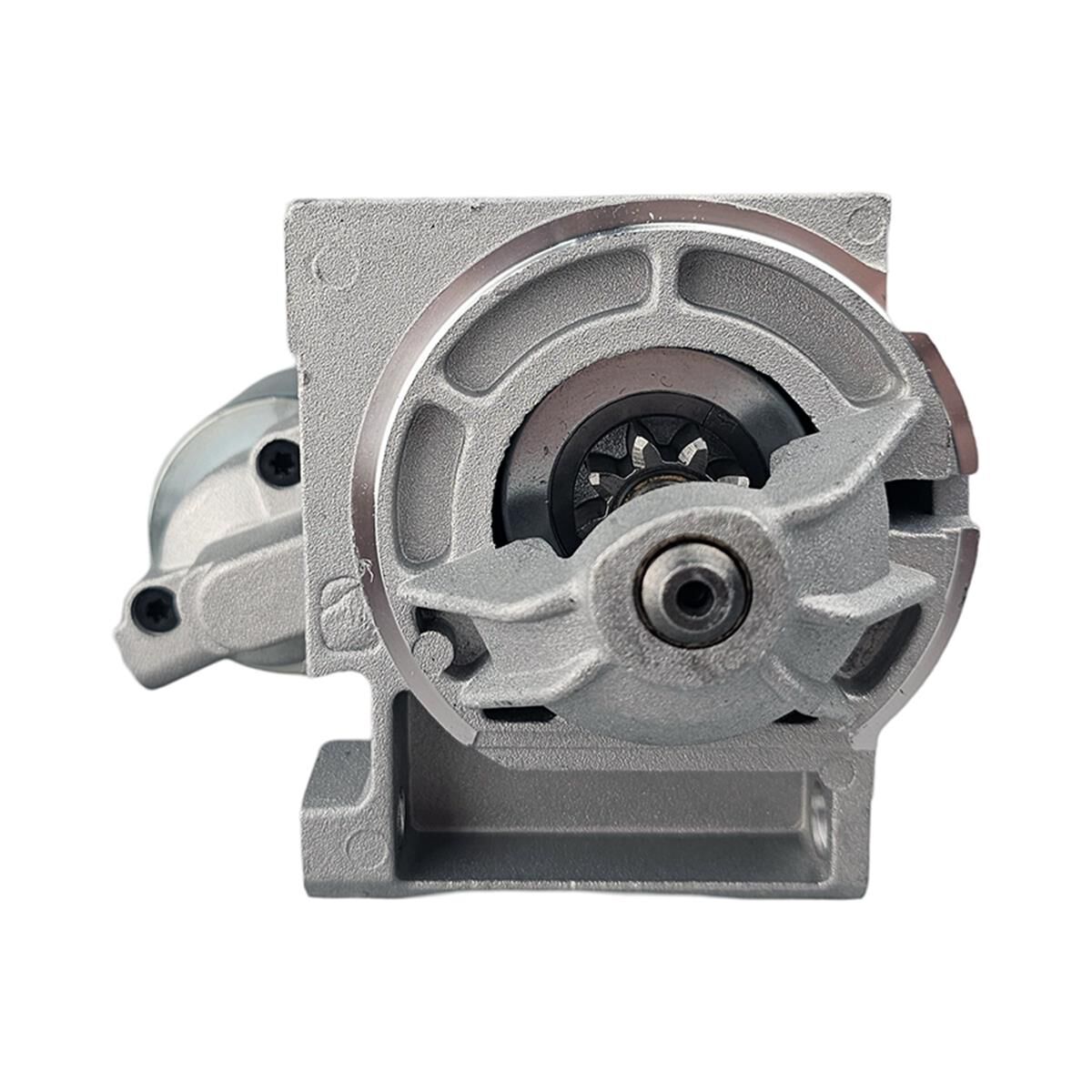

The Basco Starter Motor to Suit Commodore VR–VT 5.0L V8 BSM1050 is a direct replacement starter motor for selected Holden V8 models. It runs on 12 volts with a 1.4kW output, clockwise rotation and a 9 tooth pinion with 7mm of pinion at rest travel. The unit has an overall length of 243mm, an 82mm flange diameter and mounting holes spaced 83mm apart, matching the factory fitment.
This starter motor suits the Holden Commodore, Calais, Caprice and Statesman VS–VT 5.0L 304 (LB9) V8 and the police pack VS–VT 5.0L/5.7L 304 Stroker V8, built between 1993 and 2000. It uses two long mounting bolts to suit vehicles with that nose cone configuration; vehicles fitted with one long and one short bolt require the BSM1038 starter instead. The starter motor is backed by a 2 year or 40,000km warranty, whichever occurs first.
Features
- To suit Holden Commodore VR–VT 5.0L V8 (LB9) using 2 x long mounting bolts
- Also suits Holden Calais, Caprice and Statesman VS–VT 5.0L/5.7L Stroker V8 models
- 12V starter motor with 1.4 kW output and 9T pinion gear
- Clockwise rotation with 7mm pinion at rest for reliable engagement
- 243mm overall length with 82mm flange diameter matches OE mounting
- Built for Aussie conditions: tough, heat-resistant and reliable for harsh terrain
- OEM quality, better value: matches or exceeds OEM specs at a lower cost
- 100% brand new components
- 2 year or 40,000km warranty, whichever occurs first
Tech Spec
| Vehicle Fitment | Holden Commodore/Berlina VR-VS-VT 5.0L 304 (LB9) V8 RWD (07/1993-12/2000); Calais VS-VT (04/1995-06/1999); Caprice VS (04/1995-06/1999); Statesman VS (04/1995-12/1996) 5.0L/5.7L 304 Stroker V8; Police VS-VT 5.0L/5.7L 304 Stroker V8 (09/1997-06/1999) |
|---|---|
| Engine Fitment | 5.0L 304 (LB9) V8; 5.7L 304 Stroker V8 |
| Power (kW) | 1.4kW |
| Pinion Teeth | 9T |
| Voltage (V) | 12V |
| Rotation | Clockwise |
| Overall Length (mm) | 243mm |
| Flange Diameter (mm) | 82mm |
| Mounting Hole Centres (mm) | 83mm |
| Warranty | 2 years or 40,000kms (whichever occurs first) |
| Pinion at Rest | 7mm |
| Pinion Diameter | 25mm |
| Nose Cone Length | 44mm |
| Mounting Hole Diameter | 9mm |
| Bolt Configuration | 2 x long bolts |
