Product Info
Product Info

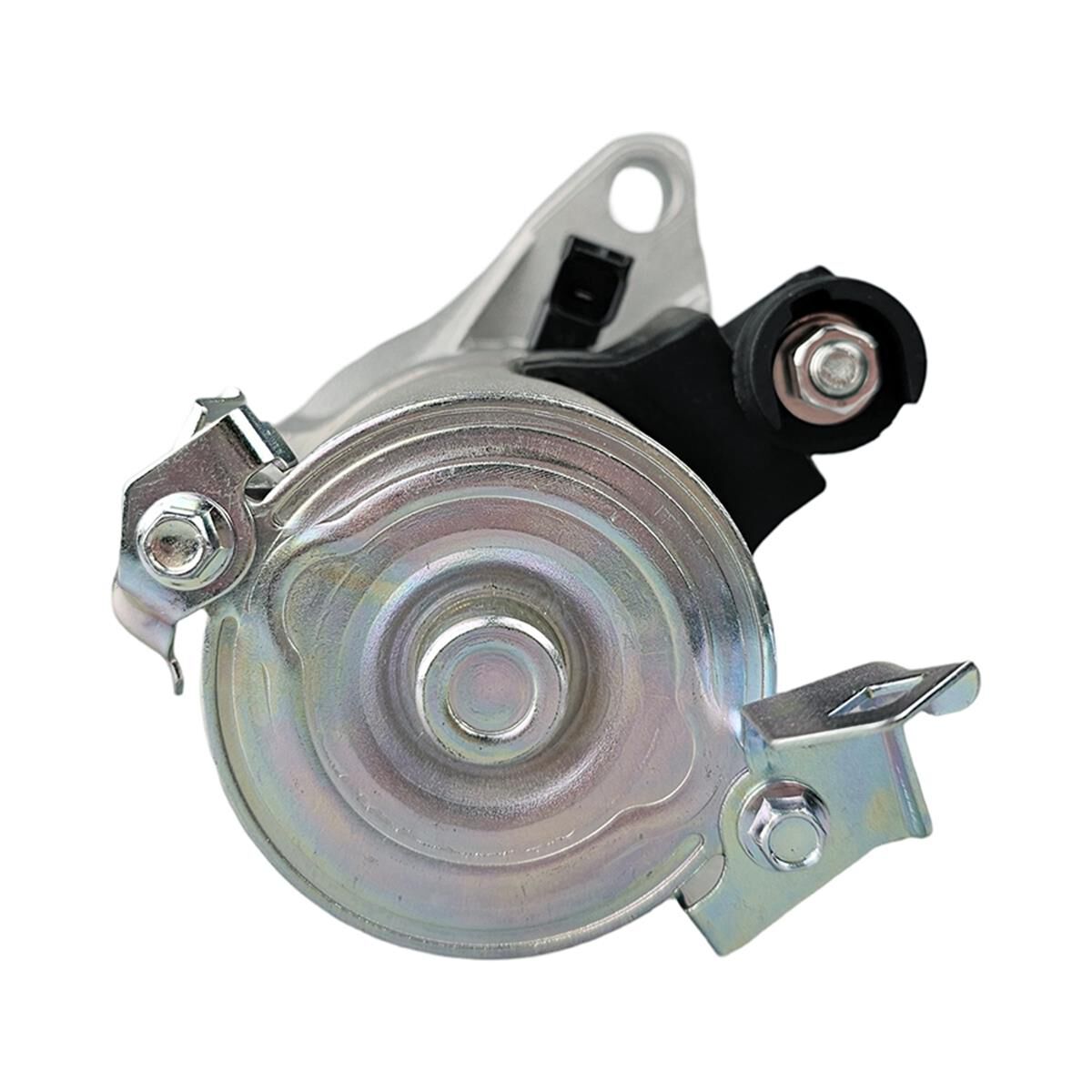

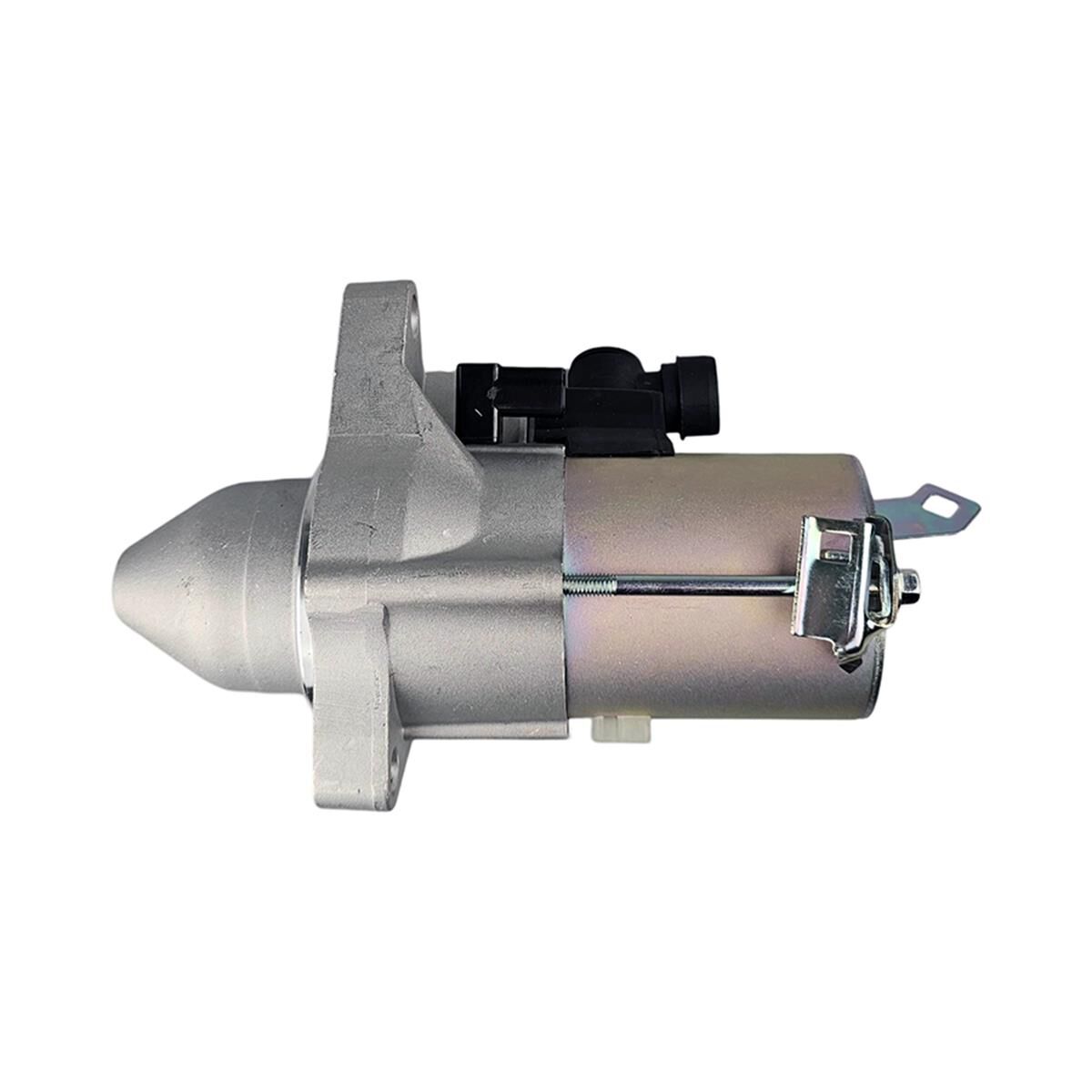

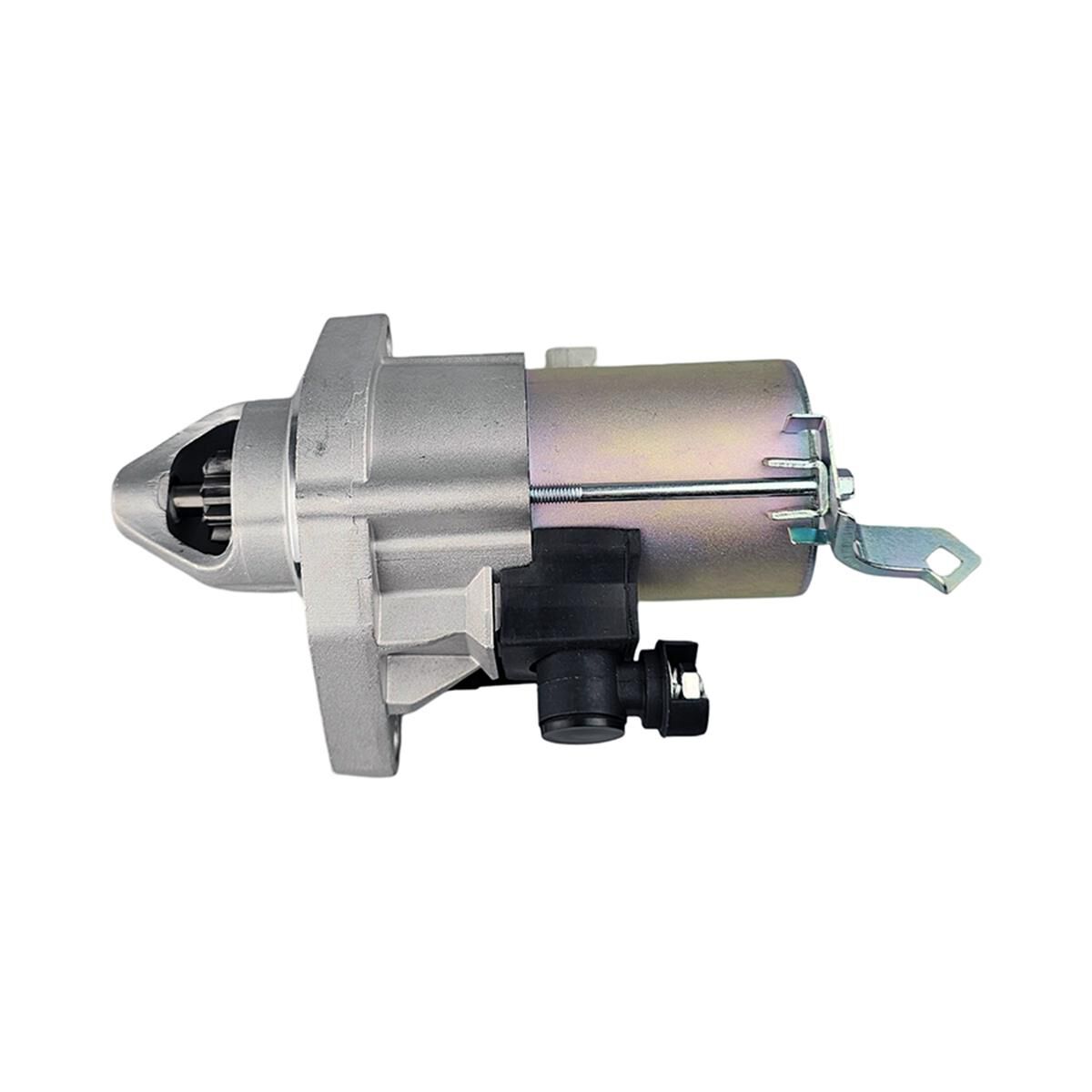

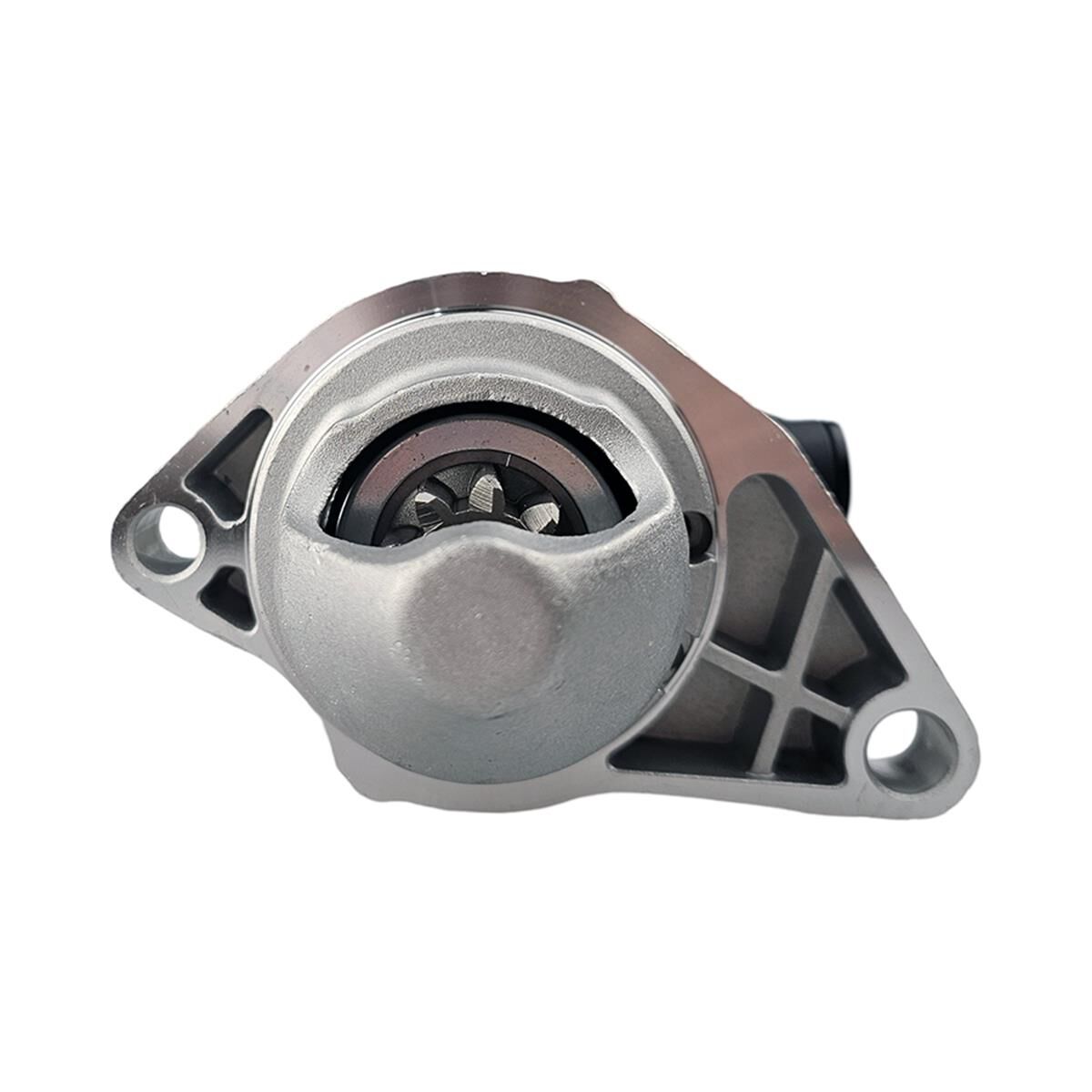

The Basco Starter Motor to Suit Honda Civic FD1 FK2 1.8L Auto BSM1063 replaces the factory Mitsuba starter on automatic Civic models built 2006 to 2012. It suits the Honda Civic FD1 1.8L R18A1 and Civic FK2 1.8L R18A2, both front wheel drive and automatic only, fitted with a 12V motor rated at 1.2kW, a 9 tooth pinion and clockwise rotation. The unit measures 210mm overall with a 75mm flange diameter and 124mm mounting hole centres, matching the original Mitsuba starter's footprint.
Starter motor failure on these Civic models typically shows up as a no-crank, single click or slow cranking sound when turning the key. This replacement starter motor is tested before dispatch and backed by a 2 year or 40,000km warranty, whichever occurs first.
Features
- Suits Honda Civic FD1 FK2 1.8L R18A1 R18A2 automatic models 2006–2012
- Replaces Mitsuba brand starter motor for direct OE fitment
- 12V starter motor delivers 1.2 kW output for strong cranking power
- 9 tooth pinion with clockwise rotation engages smoothly on start
- 210mm overall length and 75mm flange diameter suit factory mounting
- Built for Australian conditions: tough, heat-resistant and reliable in harsh terrain
- 100% performance tested before dispatch for guaranteed reliability
- 2 Year / 40,000km Warranty
Tech Spec
| Vehicle Fitment | Honda Civic FD1 1.8L R18A1 FWD Auto (02/2006–01/2012); Honda Civic FK2 1.8L R18A2 FWD Auto (02/2006–06/2012) |
|---|---|
| Engine Fitment | 1.8L R18A1 / R18A2 |
| Power (kW) | 1.2kW |
| Pinion Teeth | 9T |
| Voltage (V) | 12V |
| Rotation | Clockwise |
| Overall Length (mm) | 210mm |
| Flange Diameter (mm) | 75mm |
| Mounting Hole Centres (mm) | 124mm |
| Warranty | 2 years or 40,000kms (whichever occurs first) |
| Pinion at Rest | 36mm |
| Pinion Diameter | 29mm |
| Mounting Hole Diameter | 14 x 11mm |
| Nose Cone Length | 65mm |
