Product Info
Product Info

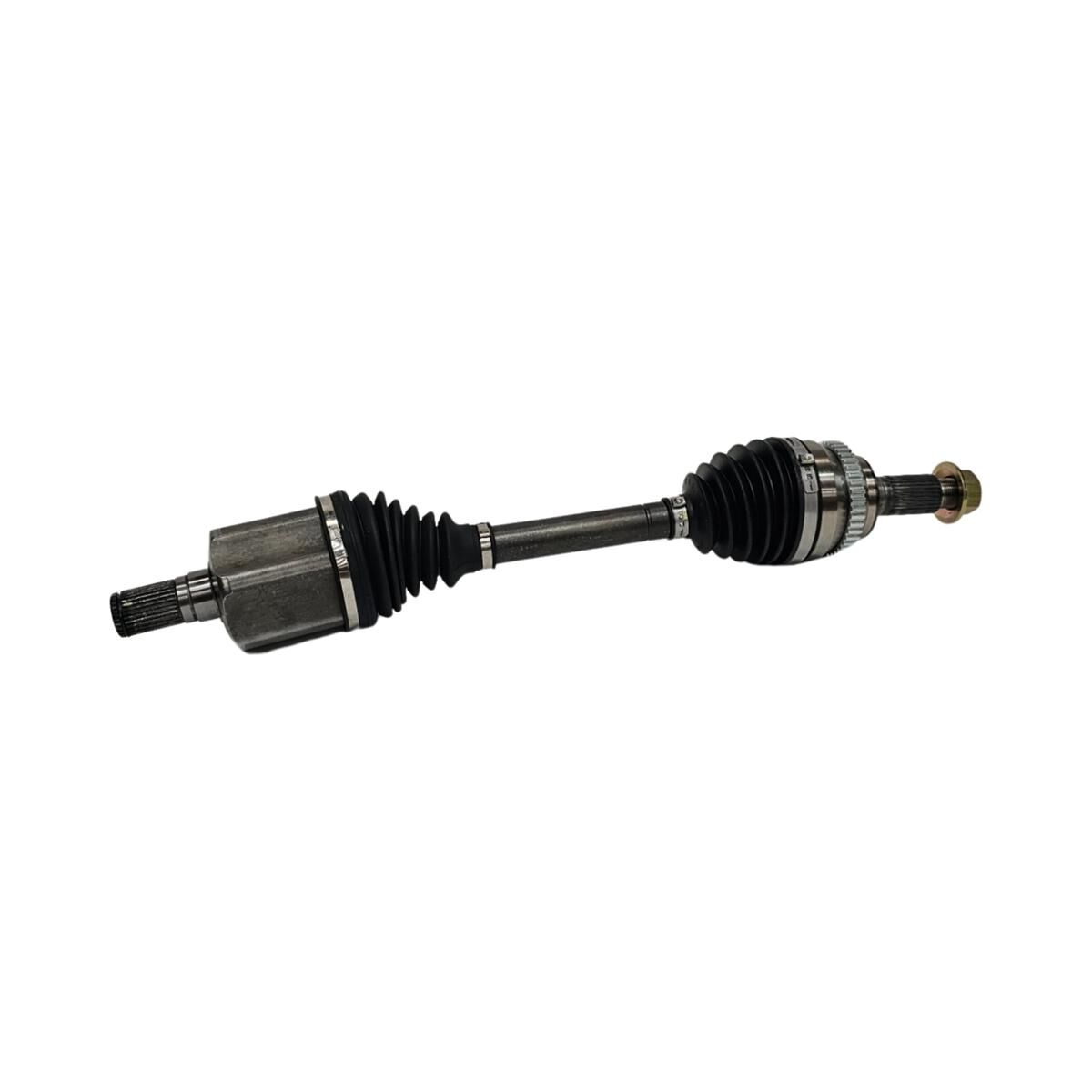

The Basco Constant Velocity Axle CVA1201 suits the left front of these AWD and FWD models. It fits the Mazda CX-7 ER built 11/2006 to 01/2012 with the 2.3L L3VDT petrol engine in AWD, and the Mazda CX-9 TB built 12/2007 to 07/2016 with the 3.7L V6 petrol engine in AWD or FWD.
This left front CV axle, also known as a half shaft, is built to OEM specifications from heat-treated chrome steel for long service life. Neoprene dust boots and stainless steel clamps keep out dirt and moisture, while an internal moly grease pack maintains smooth operation at varying angles, speeds and high revolutions. It has a 634mm compressed length, 31 splines on both the wheel side and differential side, a 44-tooth ABS ring and an M24 x 1.5 hub nut, and is backed by a 2 year or 40,000km warranty, whichever occurs first.
Features
- Suits Mazda CX-7 ER 2.3L and CX-9 TB 3.7L V6 left front CV axle shaft
- Built tough to OEM specifications using heat-treated chrome steel for long service life
- High-quality neoprene dust boots and stainless steel clamps keep out dirt and moisture
- Packed with moly grease for smooth operation at varying angles, speeds and high revolutions
- Designed and tested to OEM standards for durability and fitment confidence
- 31 spline count on both wheel side and differential side for secure engagement

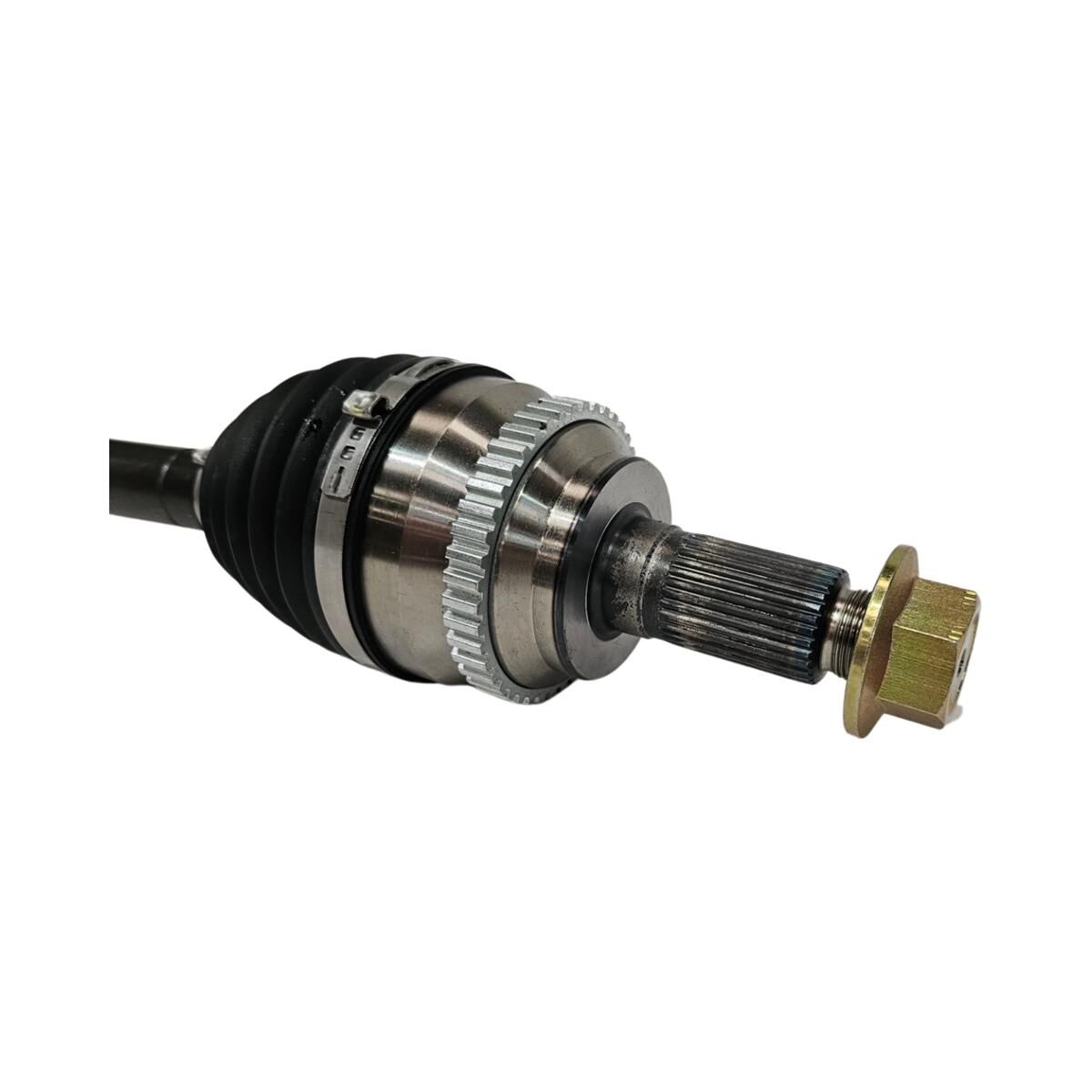

- 44-tooth ABS ring for accurate wheel speed sensor reading
- M24 x 1.5 hub nut thread size
- 2 year warranty, or 40,000kms, whichever occurs first
Tech Spec
| Vehicle Fitment | Mazda CX-7 ER 11/2006~01/2012 Petrol 2.3L L3VDT AWD; Mazda CX-9 TB 12/2007~07/2016 Petrol 3.7L V6 AWD; Mazda CX-9 TB 06/2011~07/2016 Petrol 3.7L V6 FWD |
|---|---|
| Position | Front, Left Hand Side (Automatic) |
| Product Type | CV Axle Shaft |
| Length (mm) | 634mm (compressed) |
| Spline Count | Outer/wheel side: 31, Inner/diff side: 31 |
| ABS Ring | 44 teeth |
| Transmission Type | Automatic |
| Kit Contents | 1 x CV Shaft |
| Warranty | 2 years or 40,000kms (whichever occurs first) |
| Hub Nut | M24 x 1.5 |
