Product Info
Product Info

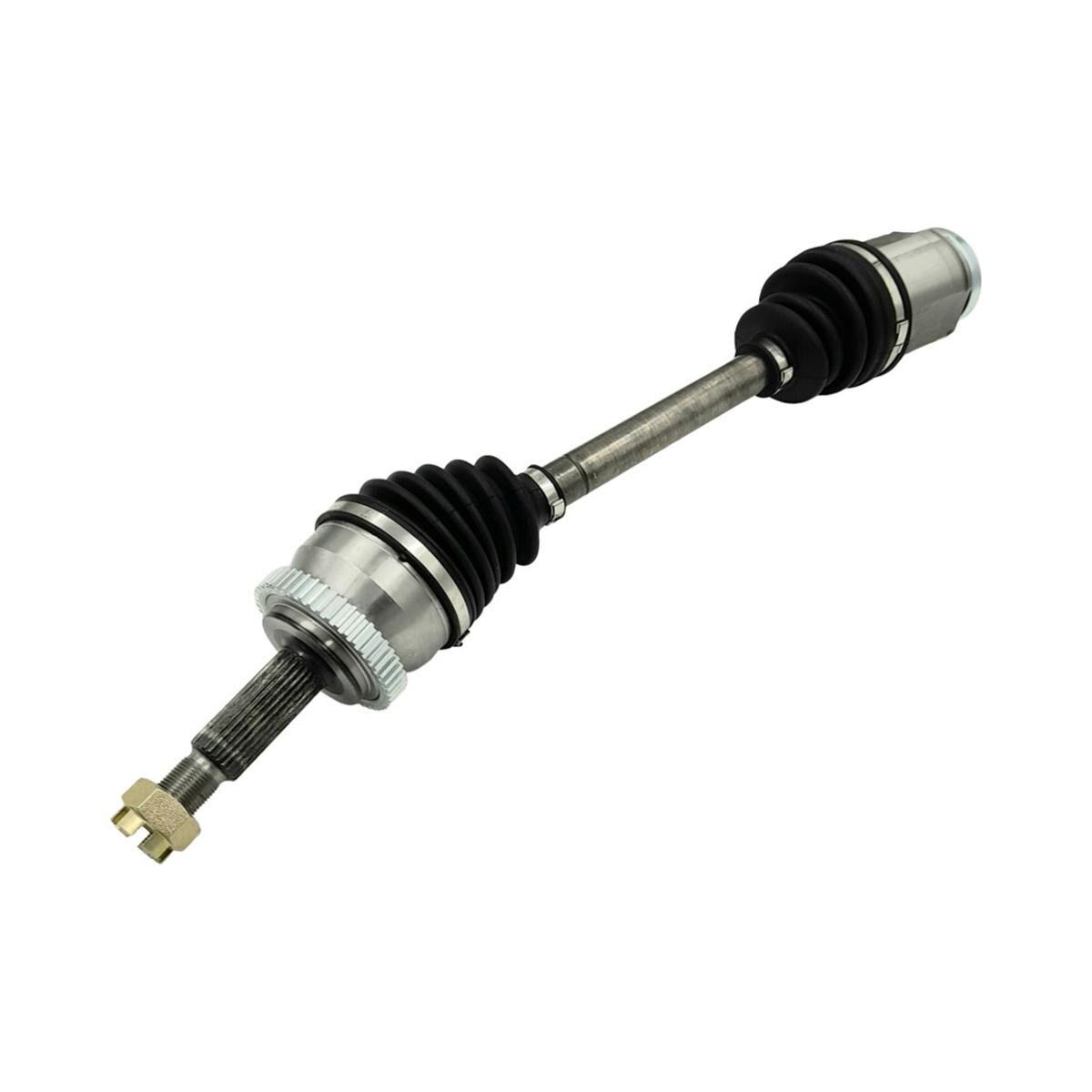

The Basco Constant Velocity Axle, CVA1199 replaces the factory right front automatic CV axle on these vehicles. It fits Hyundai IX35 LM (2010 to 2013) with the 2.4L G4KE engine, Hyundai Tucson (2004 to 2010) with the 2.7L G6BA engine, and Kia Sportage (2005 to 2009) with the 2.7L G6BA engine.
Manufactured to OEM specifications using heat-treated chrome steel, the axle shaft is built for strength and long service life. High-quality neoprene dust boots and stainless steel clamps keep out dirt and moisture, while moly grease packed inside ensures smooth operation at varying angles, speeds and high revolutions. The shaft measures 600mm compressed, with 27 teeth on the outer wheel-side spline, 24 teeth plus 2 blank on the inner diff-side spline, and a 48-tooth ABS ring, fitted with an M22 x 1.5 hub nut.
Features
- Suits Hyundai IX35 LM (2010–2013), Hyundai Tucson (2004–2010) and Kia Sportage (2005–2009)
- Right front position, suited to automatic transmission vehicles
- Built tough to OEM specifications using heat-treated chrome steel for long service life
- High-quality neoprene dust boots and stainless steel clamps keep out dirt and moisture
- Packed with moly grease for smooth operation at varying angles, speeds and high revolutions
- Designed and tested to OEM standards for durability and fitment
- 2 years or 40,000km warranty
Tech Spec
| Vehicle Fitment | Hyundai IX35 LM (2010-2013) 2.4L G4KE; Hyundai Tucson (2004-2010) 2.7L G6BA; Kia Sportage (2005-2009) 2.7L G6BA |
|---|---|
| Position | Right Hand Side Front, Automatic |
| Product Type | CV Axle Joint |
| Length (mm) | 600mm (compressed) |
| Spline Count | Outer/Wheel Side: 27 Teeth; Inner/Diff Side: 24 + 2 blank |
| ABS Ring | 48 teeth |
| Transmission Type | Automatic |
| Kit Contents | 1 x CV Shaft |
| Warranty | 2 years or 40,000km (whichever occurs first) |
| Hub Nut Size | M22 x 1.5 |
