Product Info
Product Info

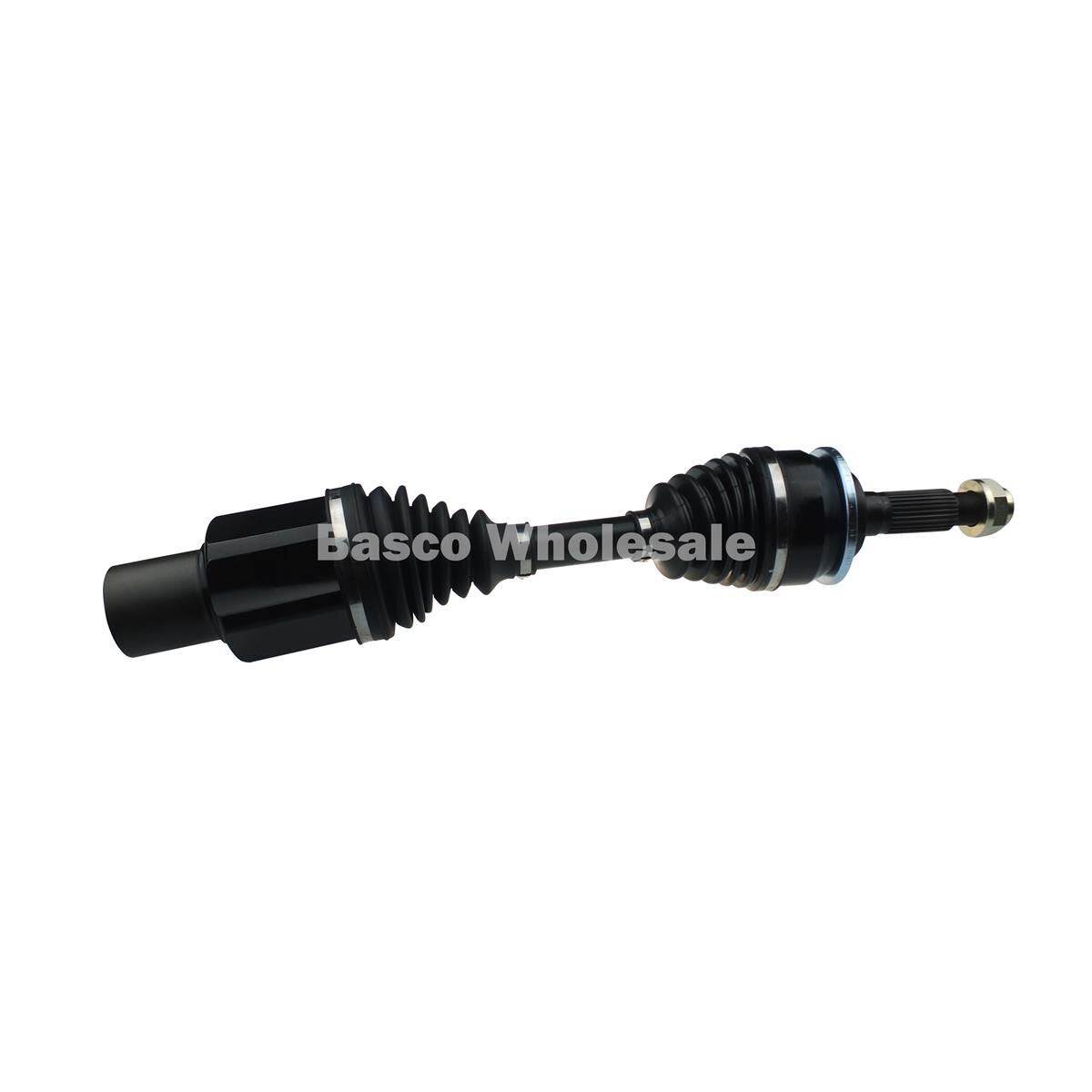

The Basco RH Front CV Axle to Suit Ford Ranger PX1 PX2 PX3/Mazda BT50 UP UR 4WD Auto/Manual CVA1012 is a direct replacement CV axle built to OEM specifications. It suits Ford Ranger PX1, PX2, PX3 models from September 2011 to June 2022 and Mazda BT50 UP and UR models from November 2011 to July 2020, fitted to 4WD manual and automatic variants. It does not fit Ranger Raptor or Raptor X models.
Heat-treated chrome steel construction maximises service life, while high-quality neoprene dust boots and stainless steel clamps keep dirt and moisture out of the joint. The shaft is packed with moly grease for smooth operation at varying angles, speeds and high revolutions, and measures 568.5mm in length with a 28 spline wheel end and a 28 spline plus keyway diff side fitting an M24x1.5 nut. It is covered by a 2 year or 40,000km warranty, whichever occurs first.
Features
- Suits Ford Ranger PX1, PX2, PX3 and Mazda BT50 UP UR 4WD manual and automatic models
- Built tough to OEM specifications using heat-treated chrome steel for maximum strength and long service life
- High-quality neoprene dust boots and stainless steel clamps prevent dirt and moisture contamination
- Moly grease reduces friction for smooth operation at varying angles, speeds and high revolutions
- Designed and tested to OEM standards for durability and fitment confidence
- 2 years or 40,000km warranty, whichever occurs first
Tech Spec
| Vehicle Fitment | Ford Ranger PX1, PX2, PX3 2.0L, 2.2L, 3.2L 4WD manual/automatic (09/2011–06/2022, excludes Raptor/Raptor X); Mazda BT50 UP, UR 3.2L 4WD manual/automatic (11/2011–07/2020) |
|---|---|
| Position | Front Right Hand Side |
| Product Type | CV Axle Drive Shaft |
| Length (mm) | 568.5mm |
| Spline Count | Wheel end: 28 spline; Diff side: 28 spline + 1 keyway (internal) |
| Transmission Type | Automatic/Manual |
| Kit Contents | 1 x CV Shaft |
| Warranty | 2 years or 40,000km (whichever occurs first) |
| Nut Size | M24x1.5 |
