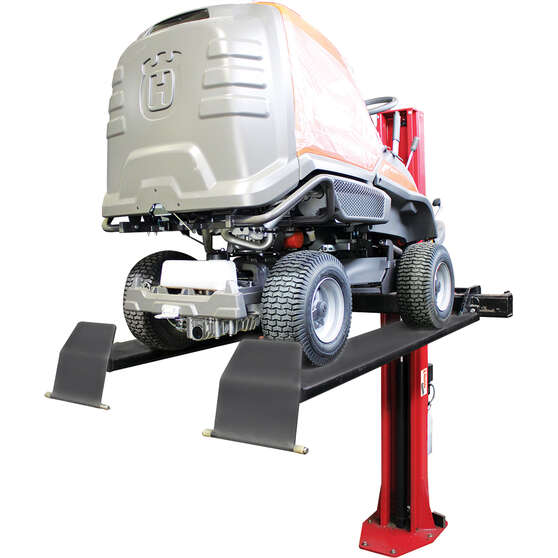

The Alemlube Single Post Hoist 1000kg AA101P is a hydraulic single post vehicle hoist built for workshops with limited floor space. It lifts all terrain vehicles, ride-on mowers, small tractors, golf carts, mobility scooters and light vehicles up to a 1,000kg safe working load, giving full underbody access without the footprint of a larger two-post or four-post hoist. Operating on a 240V single phase power supply, the hoist suits workshops and dealerships without three phase power.
Safety features include two electromagnetic locking devices built into the column, wheel stops on the adjustable platforms and a safety pin system. The adjustable platforms run from 1,060mm to 1,500mm wide to suit different track widths, each platform measuring 350mm wide with a length of 1,850mm, or 2,010mm including the ramps. The hoist rises in 50 seconds and lowers in a two-speed cycle of 20 or 40 seconds, up to a maximum lift height of 1,750mm.
Features
- Load capacity of 1,000kg and 240V single phase power supply
- Hydraulic cylinder lifting mechanism
- Two safety electromagnetic locking devices installed in the column
- Rise time of 50 seconds
- Two speed descending time of 20 seconds / 40 seconds
- Max. lifting height: 1,750mm
- Each platform measures 350mm wide
- Platform length of 1,850mm, with ramps 2,010mm
- Max. platforms adjustable width setting: 1,500mm
- Pricing excl. freight (quoted by Trade Team, additional). Order: 1300 787 570.
Tech Spec
| Lifting Capacity (kg) | 1,000kg |
|---|---|
| Hoist Type | Single Post |
| Maximum Lifting Height | 1,750mm |
| Overall Dimensions (L x W x H) | Length 2,395mm, Height 2,826mm (overall width not stated) |
| Power Supply / Voltage | 240V single phase |
| Product Weight | 500kg |
| Platform Width | 350mm |
| Platform Length | 1,850mm (2,010mm including ramps) |
| Max Platform Adjustable Width | 1,500mm |
| Min Platform Adjustable Width | 1,060mm |
| Descend Time | 20 seconds / 40 seconds (two-speed) |
| Rise Time | 50 seconds |
| Locking Mechanism | Two electromagnetic locking devices installed in the column |
