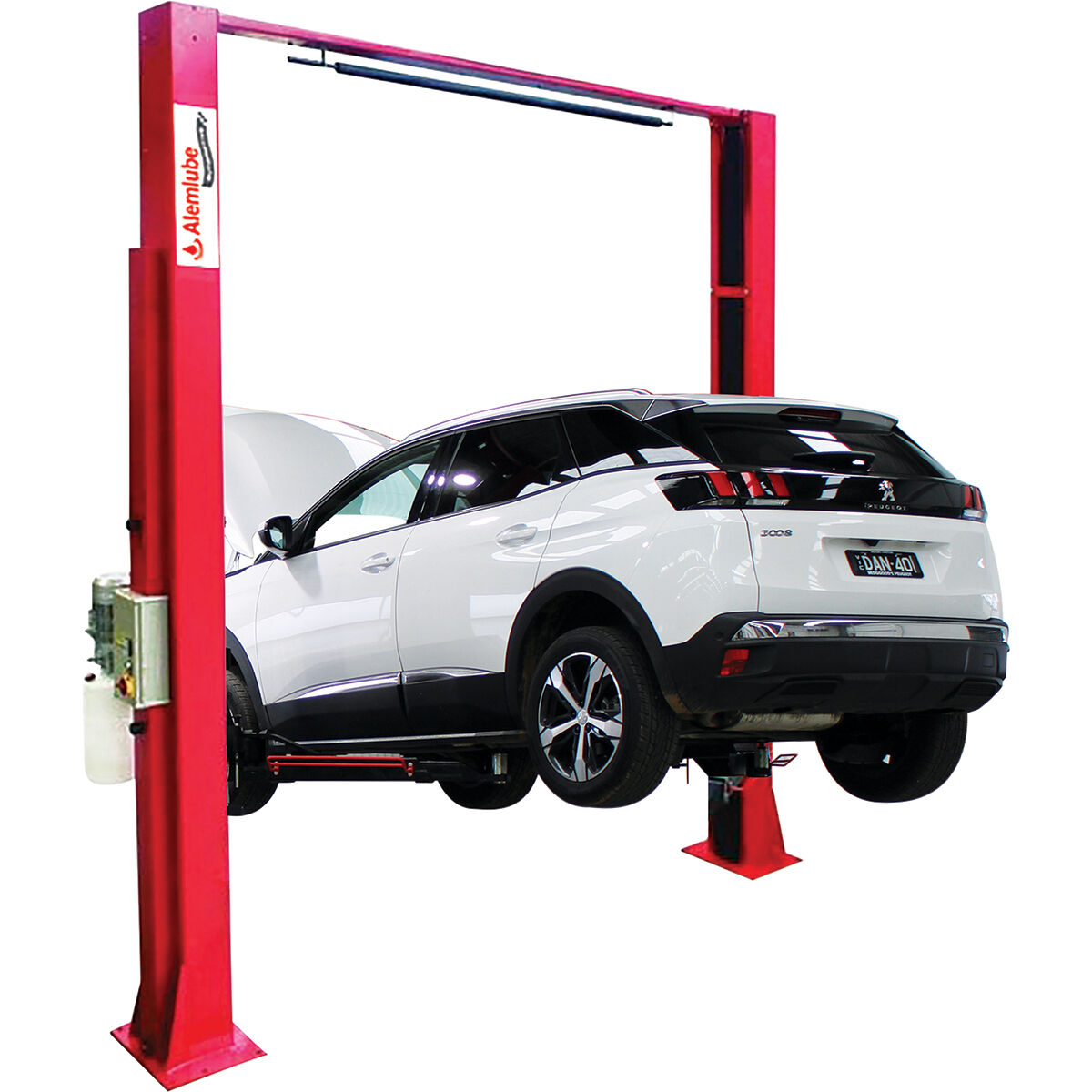

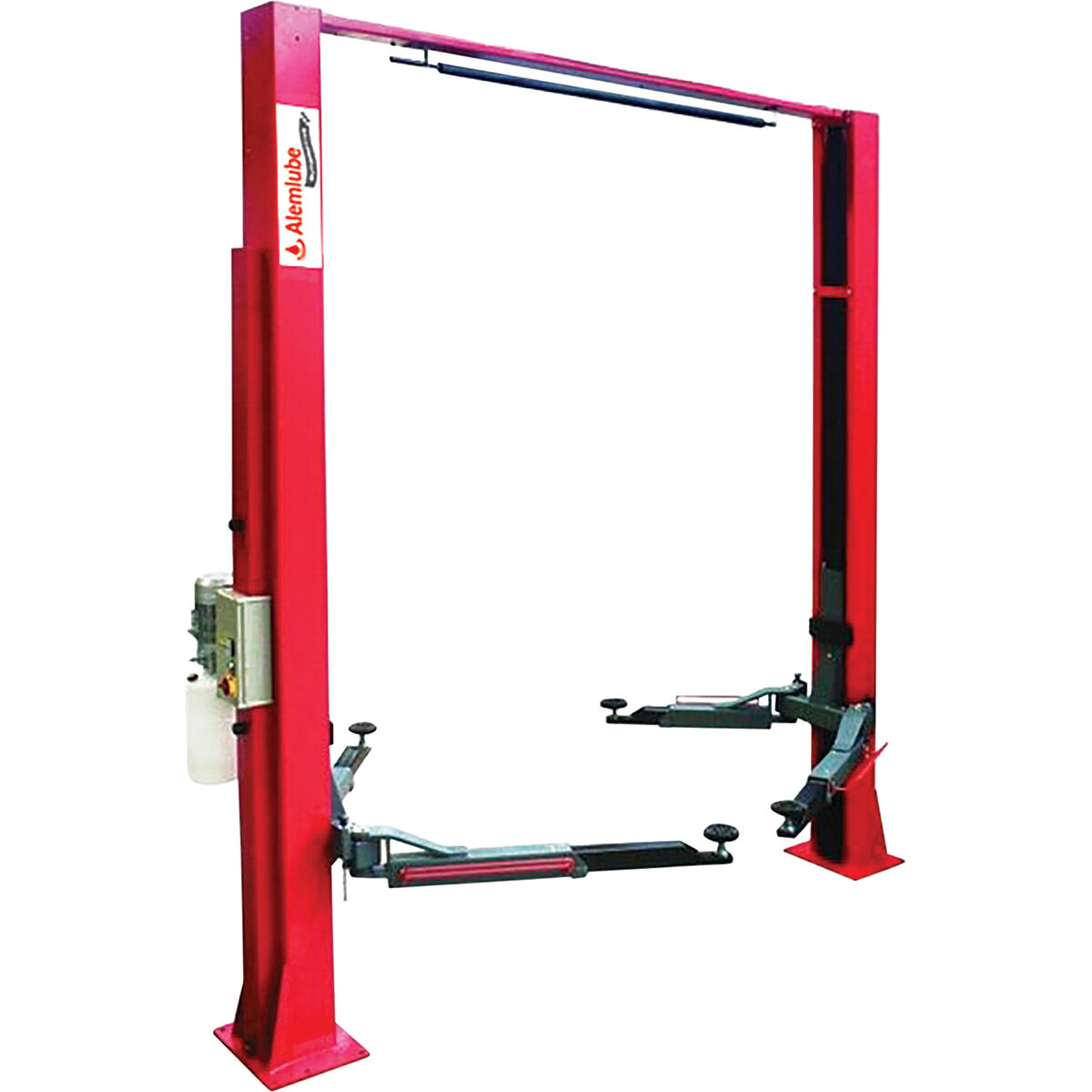

The Alemlube 2-Post Clear Floor 5t Hoist AA50CF2PN is a vehicle hoist built for quick, safe under-vehicle service in automotive workshops. It lifts up to 1,800mm with a minimum lowered height of 100mm, giving technicians fast access to large and small vehicles on large diameter lifting pads. Lifting takes around 60 seconds and lowering between 18 and 40 seconds, while asymmetric 2 and 3 stage lift arms with toe protection and automatic safety locks support the workload.
The hoist runs on standard economical 415 volt 3 phase power, with an optional 240 volt single phase power pack available for workshops without three phase supply. Electric safety locks and low voltage controls protect operators, and an aluminium motor improves cooling capacity during high work demand. Columns are spaced 3,260mm apart, with a standard height clearance of 4,182mm and an overall post height of 4,420mm, and the hoist is ideal for light commercial vehicles with a 4WD extension included.
Manufactured with quality components throughout, the AA50CF2PN complies with Australian standards and is designed to European CE standards. Installation requires connection to standard 415 volt 3 phase power, or the optional 240 volt single phase power pack.
Features
- Maximum lifting height of 1,800mm, lowered height 100mm
- High lifting capacity of 5 tonnes
- Fast lifting time of 60 seconds and lowering time of 18–40 seconds
- Asymmetric lift arms with 2 and 3 stage design, toe protection and automatic safety locks
- Large diameter lifting pads comfortably accommodate large and small vehicles
- Standard economical 415V 3-phase power with optional 240V single-phase power pack
- Aluminium motor for improved cooling capacity during high work demand
- Distance between columns: 3,260mm
- Standard height clearance of 4,182mm with overall height of 4,420mm
- Pricing excludes freight (quoted separately). Call Trade Team 1300 787 570 to order!
Tech Spec
| Lifting Capacity (kg) | 5,000kg |
|---|---|
| Hoist Type | 2-Post Clear Floor Hoist |
| Maximum Lifting Height | 1,800mm |
| Minimum Height / Lowered Height | 100mm |
| Overall Dimensions (L x W x H) | Post height 4,420mm; column spacing 3,260mm; height clearance 4,182mm |
| Power Supply / Voltage | Standard 415V 3-phase power; optional 240V single-phase power pack |
| Column / Post Spacing | 3,260mm |
| Arm Reach (Min/Max) | Asymmetric 2 and 3 stage lift arms with toe protection and automatic safety arm locks |
| Standards Compliance / Certification | Compliant with Australian standards; designed to European CE standards |
| Minimum Pad Height | 110mm |
| Application | Ideal for light commercial vehicles |
| Included Accessories | Includes 4WD extension |
| Lifting / Lowering Time | Lifting 60 seconds; lowering 18 to 40 seconds |
| Installation Requirement | Clear floor surface-mounted design requiring connection to standard 415V 3-phase power, or optional 240V single-phase power pack |
