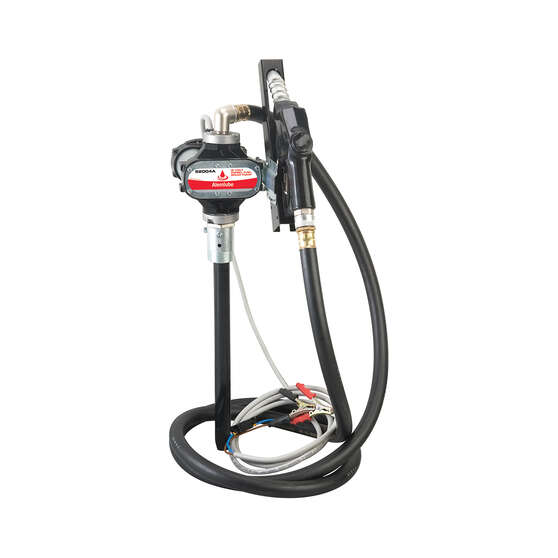

The Alemlube 12V Diesel Drum Pump Auto Nozzle 75LPM 52004A is a 12V rotary vane pump for transferring diesel fuel from drums. Supplied as a complete Piusi high flow kit, it includes a 4m x 1" delivery hose, auto shut-off nozzle 51039, 4m power cable and mounting clamps. The self-priming pump delivers up to 85 L/min free flow at 12V, 42A and 2,000 RPM, or 75 L/min with the auto nozzle fitted, on a 30 minute on, 30 minute off duty cycle.
Drum pump kits like this suit workshops, farms and fleets needing frequent diesel decanting without manual hand pumping. The telescopic downtube extends from 560mm to 1,100mm, and 1 inch BSPF inlet and outlet connections keep plumbing simple. An IP55 rating protects the motor from dust and moisture, and the 10.4kg kit is suitable for diesel fuel transfer only.
Features
- Piusi High Flow pump kit includes 4m x 1" hose, auto nozzle 51039, 4m cable and clamps
- Delivers up to 85 L/min free flow at 12V, 42A, 2,000 RPM or 75 L/min with auto nozzle
- 30 minute duty cycle (30 minutes on, 30 minutes off)
- Self-priming rotary vane pump with positive displacement
- Telescopic downtube extends 560–1,100mm
- 1" BSPF inlet and outlet connections
- IP55 rated for dust and moisture resistance
- Weighs 10.4kg
- Pricing excludes freight (quoted separately). Call Trade Team: 1300 787 570 to order.
Tech Spec
| Suitable Fluids | Diesel fuel only |
|---|---|
| Suction Tube Length | 560–1,100mm (telescopic) |
| Outlet Size / Hose Connection | 1" BSPF inlet and outlet, 4m x 1" delivery hose included |
| Body / Wetted Materials | Sintered steel rotor, acetal resin vanes |
| Discharge Hose Included | 4m x 1" hose |
| Pump Type | Rotary vane, self-priming, positive displacement |
| Voltage | 12V |
| Current Draw | 42A |
| Duty Cycle | 30 minutes on, 30 minutes off |
| Ingress Protection Rating | IP55 |
| Weight | 10.4kg |
