Product Info
Product Info

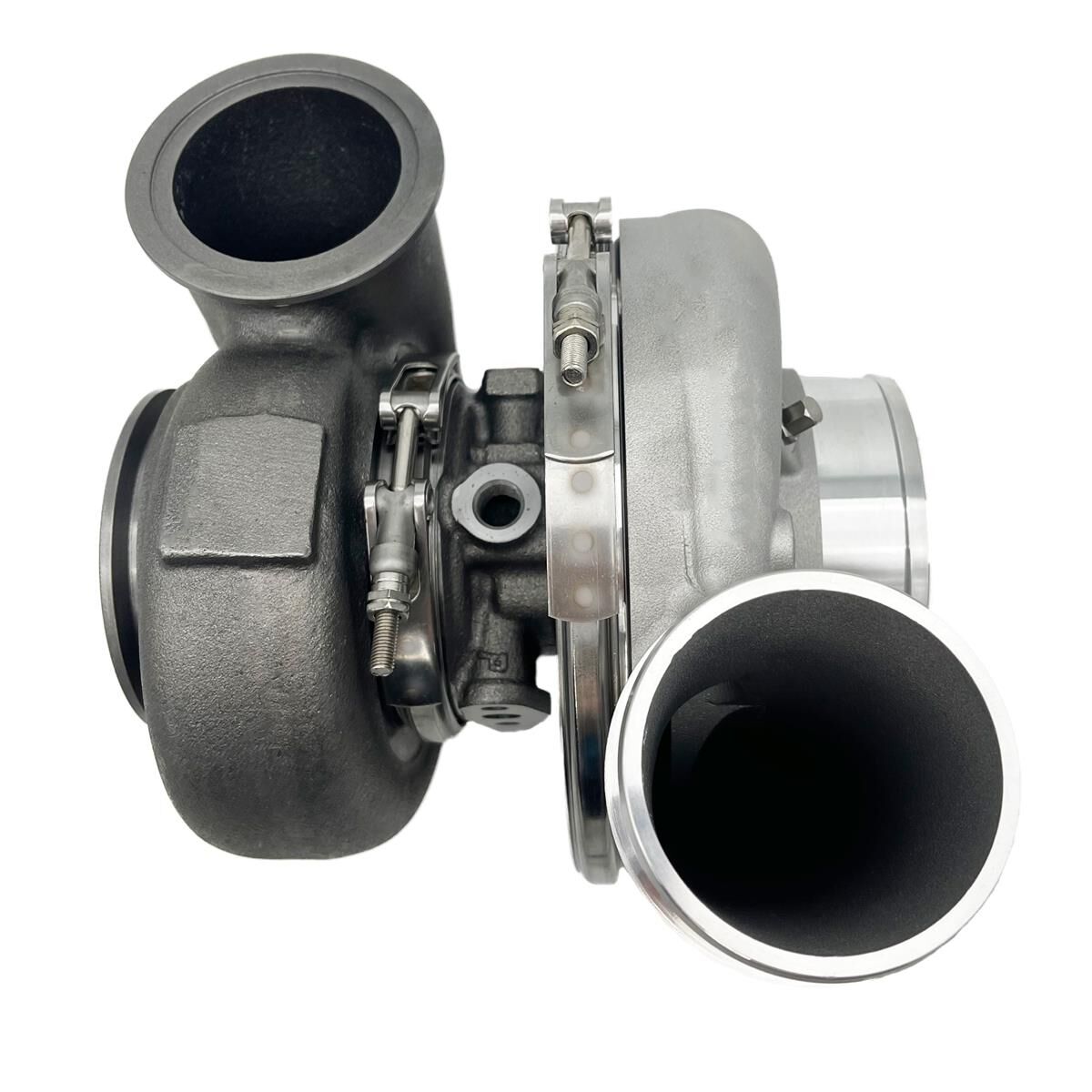

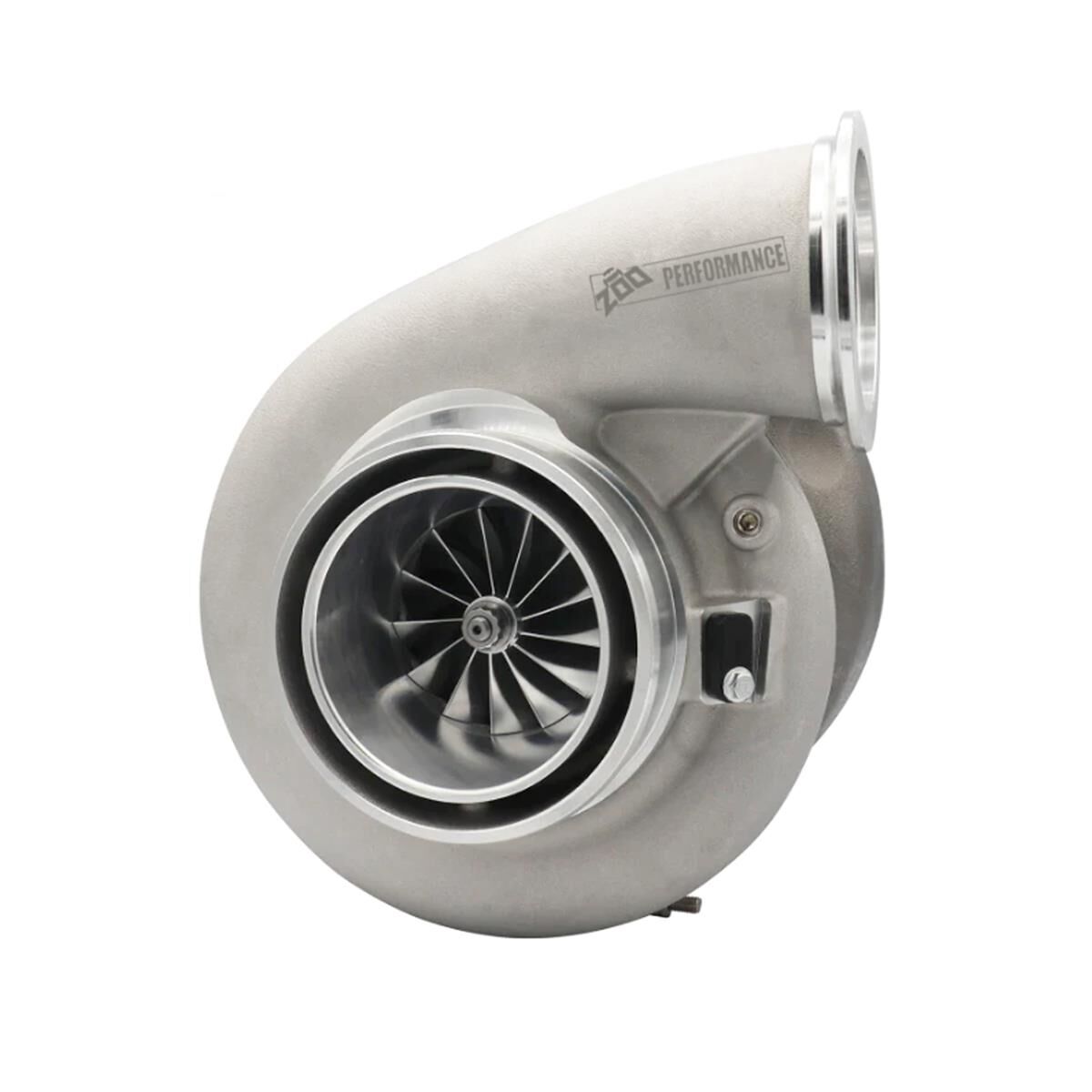

The Zoo Performance G45 Series 72mm Turbo 1350HP 1.15 A/R T4 is engineered for high output petrol and diesel engines from 2.0L to 8.0L displacement, rated from 600HP up to 1350HP. The dual ceramic ball bearing design provides optimal turbo response and prolongs the lifespan of the turbo, while the 13-blade point milled billet aluminium compressor wheel with an aerodynamic tapered tip is rated to withstand temperatures up to 200°C.
This variant features a 72mm compressor inducer wheel, 102mm compressor exducer wheel and 0.85 A/R compressor housing, paired with an 89mm turbine inducer wheel and 82mm turbine exducer wheel. The turbine wheel is manufactured from Inconel, a high quality super alloy that maintains strength at operating temperatures up to 900°C, housed in a high grade cast iron turbine housing with a 1.15 A/R and T4 inlet single scroll configuration. The compressor housing includes a ported shroud with anti-surge inlet for reliable, continuous power and a speed sensor port, and the turbo is supplied complete with stainless steel polished v-band clamps, flanges, water fittings, a turbo drain gasket and an NPT 1/4" to -4AN oil feed fitting with a 1.6mm restrictor hole.
Features
- Dual ceramic ball bearing design delivers optimal turbo response and prolongs turbo lifespan
- 600-1,350 hp rating suits 2.0L-8.0L displacement engines
- 13-blade point milled billet aluminium compressor wheel with aerodynamic tapered tip
- Ported shroud compressor cover with anti-surge inlet increases surge resistance
- Compressor housing fitted with speed sensor port for monitoring
- Inconel turbine wheel maintains strength at operating temperatures up to 900°C
- High grade cast iron turbine housing with 1.15 A/R and T4 inlet single scroll
- Supplied with v-band clamps, flanges, water fittings, drain gasket and oil feed fitting
Tech Spec
| HP Rating | 600-1,350HP |
|---|---|
| Displacement | 2.0L - 8.0L |
| Bearing System | Dual Ceramic Ball Bearing |
| Compressor Inducer Wheel | 72mm |
| Compressor Exducer Wheel | 102mm |
| Compressor A/R | 0.85 A/R |
| Turbine Inducer Wheel | 89mm |
| Turbine Exducer Wheel | 82mm |
| Turbine Housing A/R | 1.15 A/R with T4 Inlet |
| Turbine Material | Inconel |
| Turbine Housing Material | High grade cast iron |
| Included Fittings | Stainless steel v-band clamps, flanges, water fittings, turbo drain gasket, NPT 1/4" to -4AN oil feed fitting with 1.6mm restrictor hole |
