Product Info
Product Info

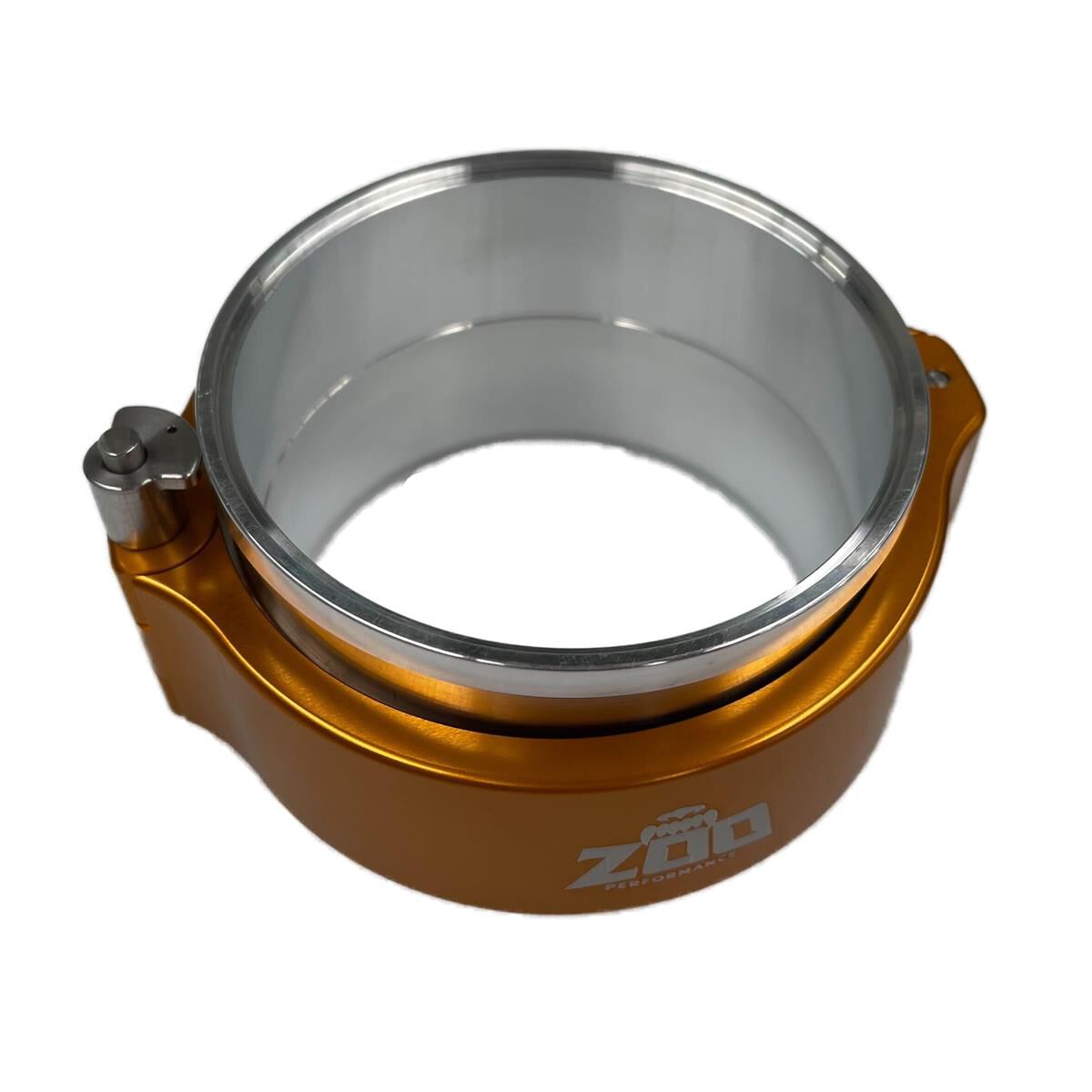

The Zoo Performance Quick Release Boost Clamp 3.5" Gold ZOO-1771-350G is CNC machined from 6061 aircraft grade billet aluminium for pressurised intercooler and boost piping on turbocharged engines. A quick release pin mechanism lets you install or adjust the clamp in hard-to-reach engine bay locations, and Viton O-rings seal the joint against boost pressure up to 500 PSI and heat up to 200°C.
The gold hard-anodised finish resists corrosion while adding a distinct look under the bonnet, and the clamp tolerates up to 12 degrees of axial misalignment from engine flex and vibration. Sized to suit 3.5" (89mm) intercooler and boost piping, the kit includes two weld ferrules, an internal sleeve and two Viton O-rings for a complete fitment.
Features
- CNC-machined from 6061 billet aluminium with a hard-anodised gold finish for corrosion resistance
- Quick release pin mechanism allows fast installation and adjustment in tight engine bays
- Viton O-rings seal the joint for boost and intercooler pressure up to 500 PSI
- Rated to 200°C for high-heat turbo and intercooler piping
- Withstands up to 12 degrees of axial misalignment from engine flex and vibration
- Suits 3.5" (89mm) intercooler and boost piping

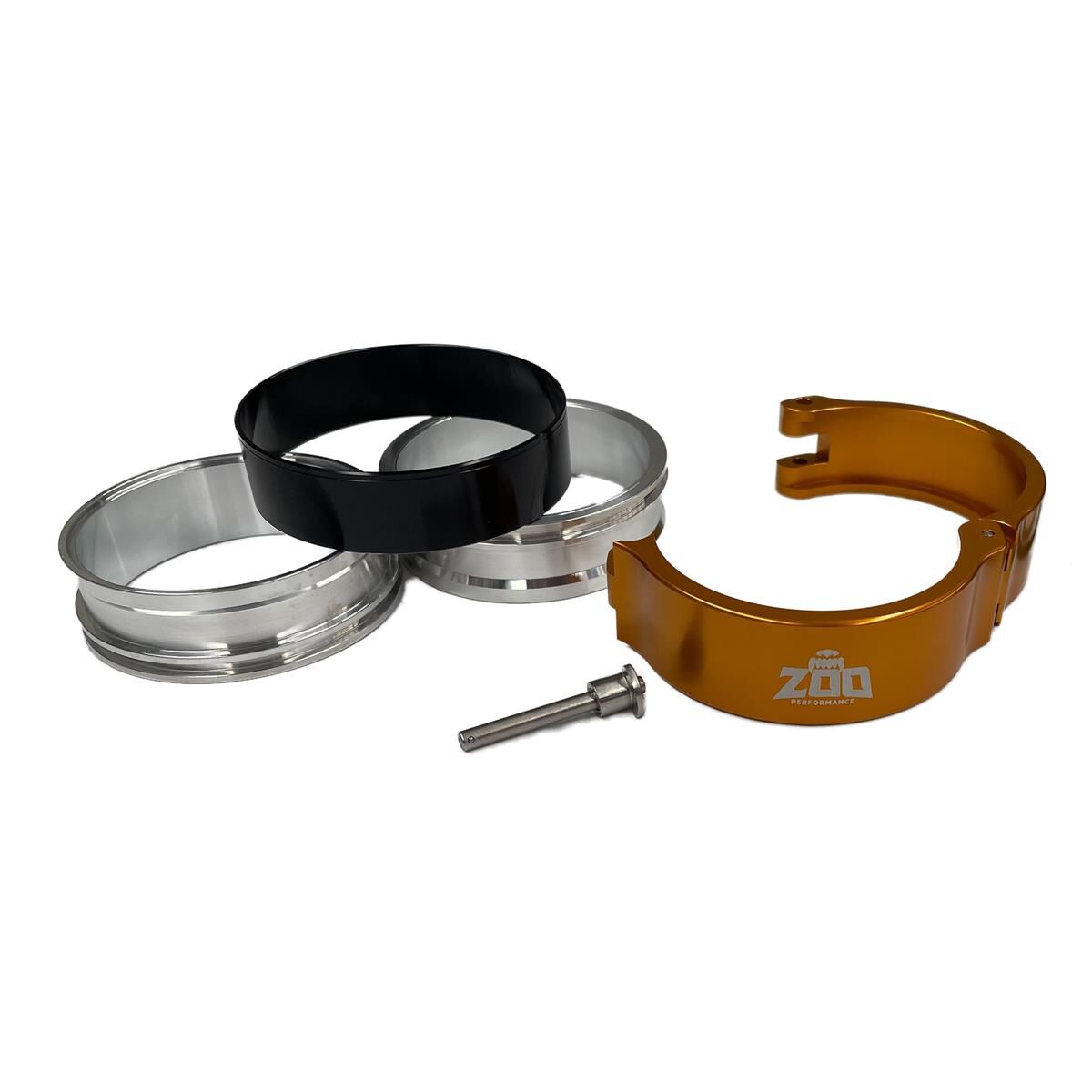

- Kit includes clamp, 2 weld ferrules, internal sleeve and 2 Viton O-rings
- Kit includes clamp, 2 weld ferrules, internal sleeve, quick release pin and 2 Viton o-rings
Tech Spec
| Clamp Type | Quick Release Intercooler/Boost Clamp |
|---|---|
| Screw/Housing Material | 6061 billet aluminium, hard anodised |
| Finish / Corrosion Resistance | Hard-anodised gold finish, anti-corrosion properties |
| Suits Hose Outside Diameter | 3.5" (89mm) |
| Quantity in Pack | 1 clamp with 2 weld ferrules, 1 internal sleeve, 1 quick release pin and 2 Viton O-rings |
| Application | Boost and intercooler piping on turbocharged engines, max 500 PSI operating pressure, 200°C max heat rating |
| Axial Misalignment Tolerance | Up to 12 degrees |
| Maximum Operating Temperature | 200°C |
| Misalignment Tolerance | Up to 12 degrees of axial movement |
