Xtreme Performance Race Sprung Ceramic Clutch Kit - KGM26005-1R
Details
https://www.supercheapauto.com.au/p/xtreme-kit-per-gmh-com-vr-vs-5.0l/SPO1211197.html
$1,199.00
$0.00
Or 4 payments of
$299.75
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO1211197
Additional Information
Product Info
Product Info
The Xtreme Clutch range of sprung ceramic upgrades has been designed for Motorsport applications that also require high dampening characteristics. These kits offer improved heat and torque capacity over their organic equivalents, but are specifically designed for Motorsport applications where these attributes are required for optimal performance and reliability. The Xtreme Clutch 100 series kit includes a performance pressure plate with increased clamping force and a sprung ceramic friction disc. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Clutch also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories.
Offering a wide range of upgrades for specific vehicle uses and performance goals, the Xtreme Clutch range of upgrade clutch kits are engineered to provide significant increases in torque holding capability and are available in a range of sizes and friction material types to provide the ideal balance between torque capacity, heat capacity and driveability. As a division of Australian Clutch Services, Xtreme Clutch takes over 30 years of experience in the Australian clutch market as well as highly qualified technicians and a comprehensive research and development facility to ensure their products provide the highest performance and reliability. The range incorporates an extensive variety of kits to suit thousands of applications as well as a comprehensive range of performance accessories and hydraulics.
Features
- Sprung ceramic Motorsport upgrade with further increased torque capacity
- Improved heat capacity
- Sprung central hub
- Designed for Motorsport applications
Tech Spec

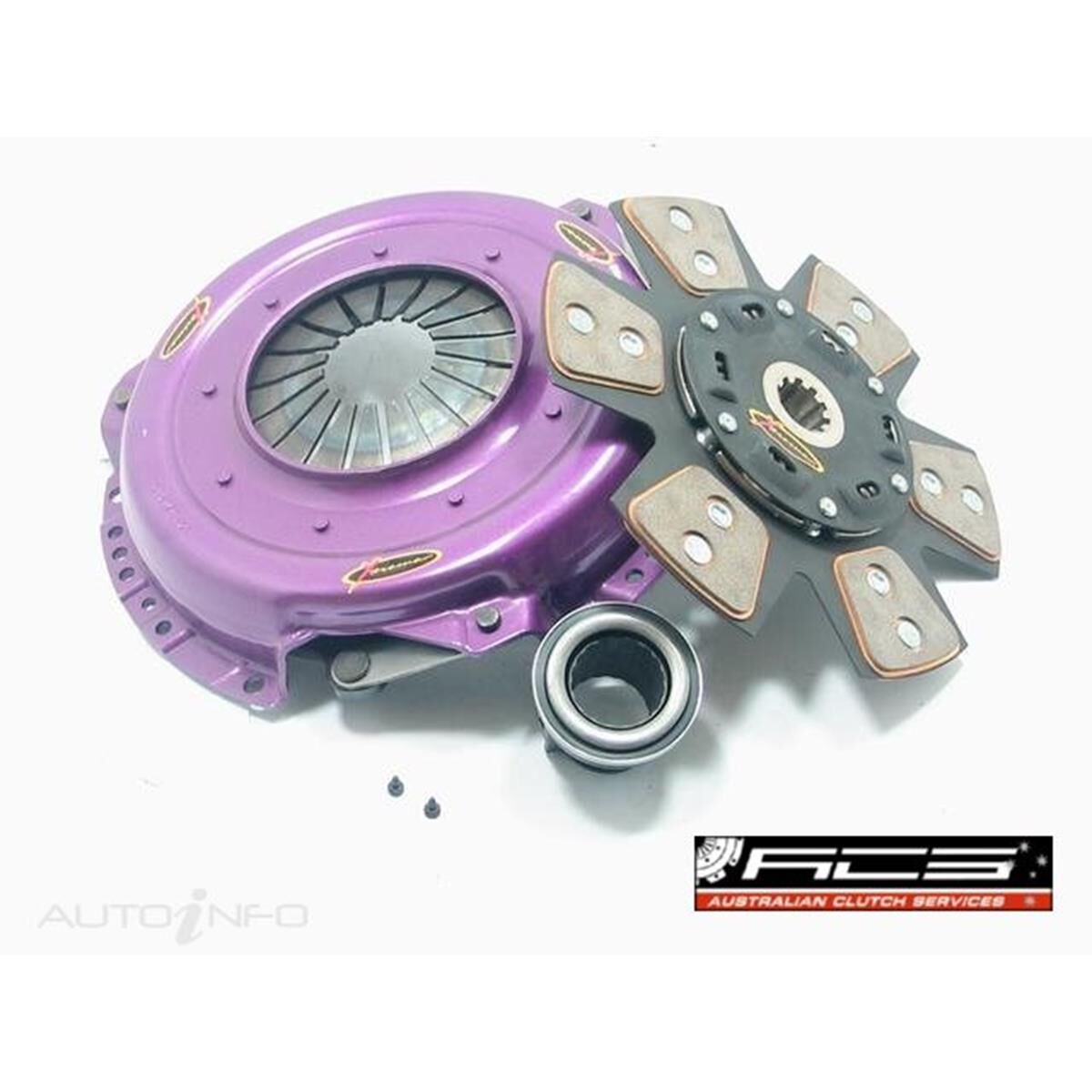

KIT PER GMH COM VR/VS 5.0L
| Flywheel Step (mm) | Flat |
|---|---|
| Clutch Disc Diameter (mm) | 255 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 29 |
| Disc Type | Sprung |
| Friction Material | Ceramic |
| Stage | 2R |
| Recommended Use | Track |
| Clamping Force % Increase | 55% |
| Torque (Nm) Inc FOS | 930 |
| Torque (ftlbs) Inc FOS | 690 |
| Spigot Bush/Bearing Included | Yes |
| Aligning Tool Included | Yes |
| Spline Grease Included | Yes |
| Weight (kg) | 8.5 |
