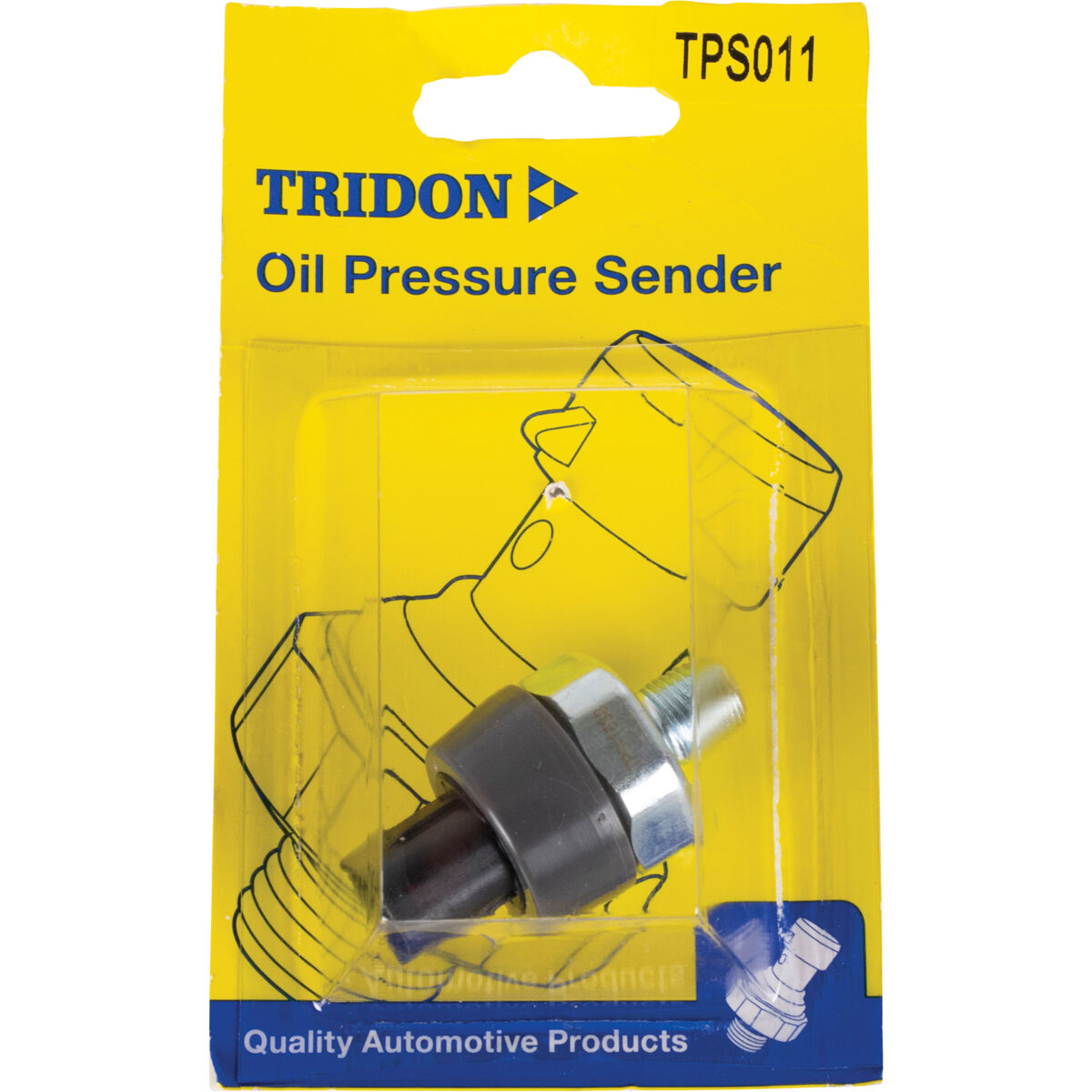

Tridon Oil Pressure Sender TPS011
Details
https://www.supercheapauto.com.au/p/tridon-tridon-oil-pressure-sender-tps011/128765.html
$23.49
$0.00
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. 128765
Additional Information
Product Info
Product Info
The Tridon Oil Pressure Sender TPS011 is a light-type oil pressure sender designed to trigger the dashboard warning light when engine oil pressure falls below a safe threshold. Built to match original manufacturer specifications, it suits vehicles with a normally closed circuit oil pressure warning system. The TPS011 uses a 1/8 GAS thread and is engineered for a direct, leak-free fit into the engine block sender port.
Key specifications include a maximum operating pressure of 0.2 bar and a 24mm spanner size, making installation straightforward with standard workshop tools. Tridon oil pressure senders are a trusted replacement choice for keeping a vehicle's lubrication monitoring system functioning correctly, backed by a two year guarantee.
Features
- Oil pressure sender, light type, triggers the dashboard warning light when pressure drops
- Normally closed circuit type opens to trigger the warning light when oil pressure falls
- 1/8 GAS thread for a secure, leak-free fit into the engine block port
- Maximum operating pressure of 0.2 bar activates the warning light at the correct threshold
- 24mm spanner size for straightforward installation with standard workshop tools
- Engineered to match original manufacturer specifications for a direct replacement fit
- Two year guarantee
Tech Spec
Tridon Oil Pressure Sender - TPS011
| Thread Type | 1/8 GAS |
|---|---|
| Circuit Type | Normally Closed |
| Maximum Operating Pressure | 0.2 Bar |
| Spanner Size | 24mm |
| Sender Function | Warning Light (Light Type) |
