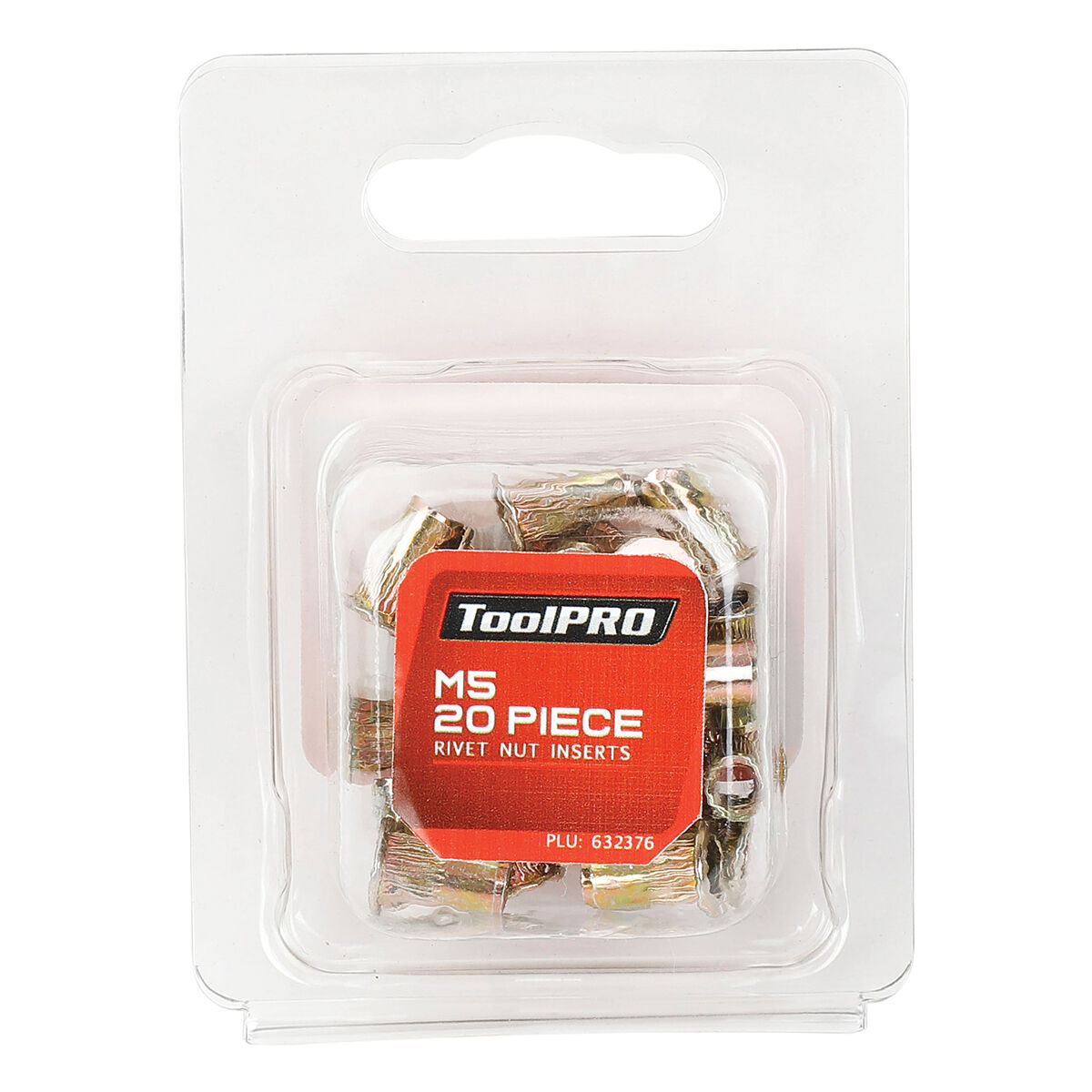

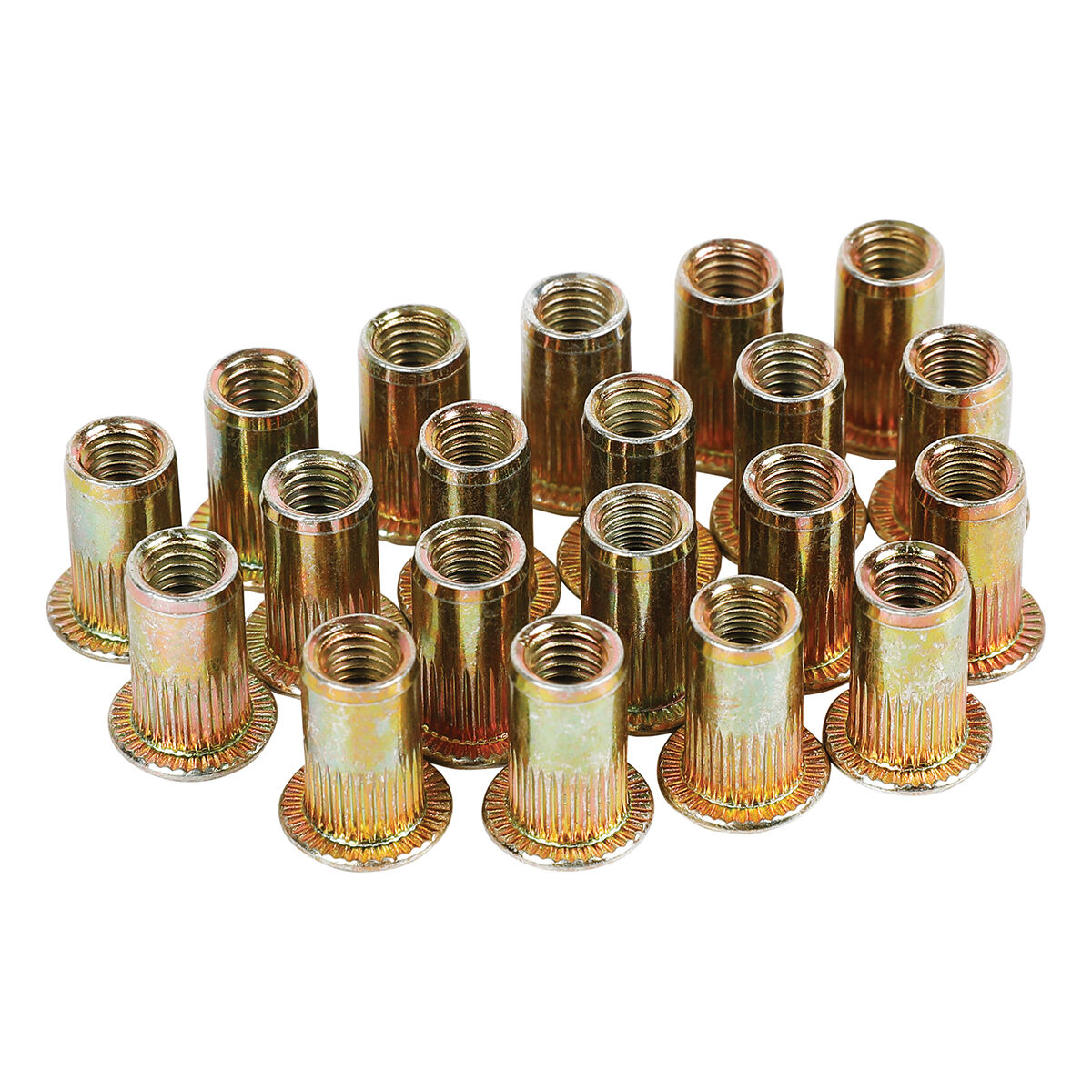

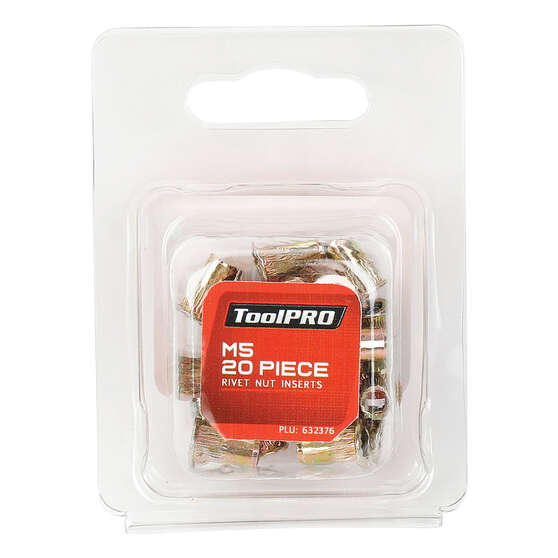

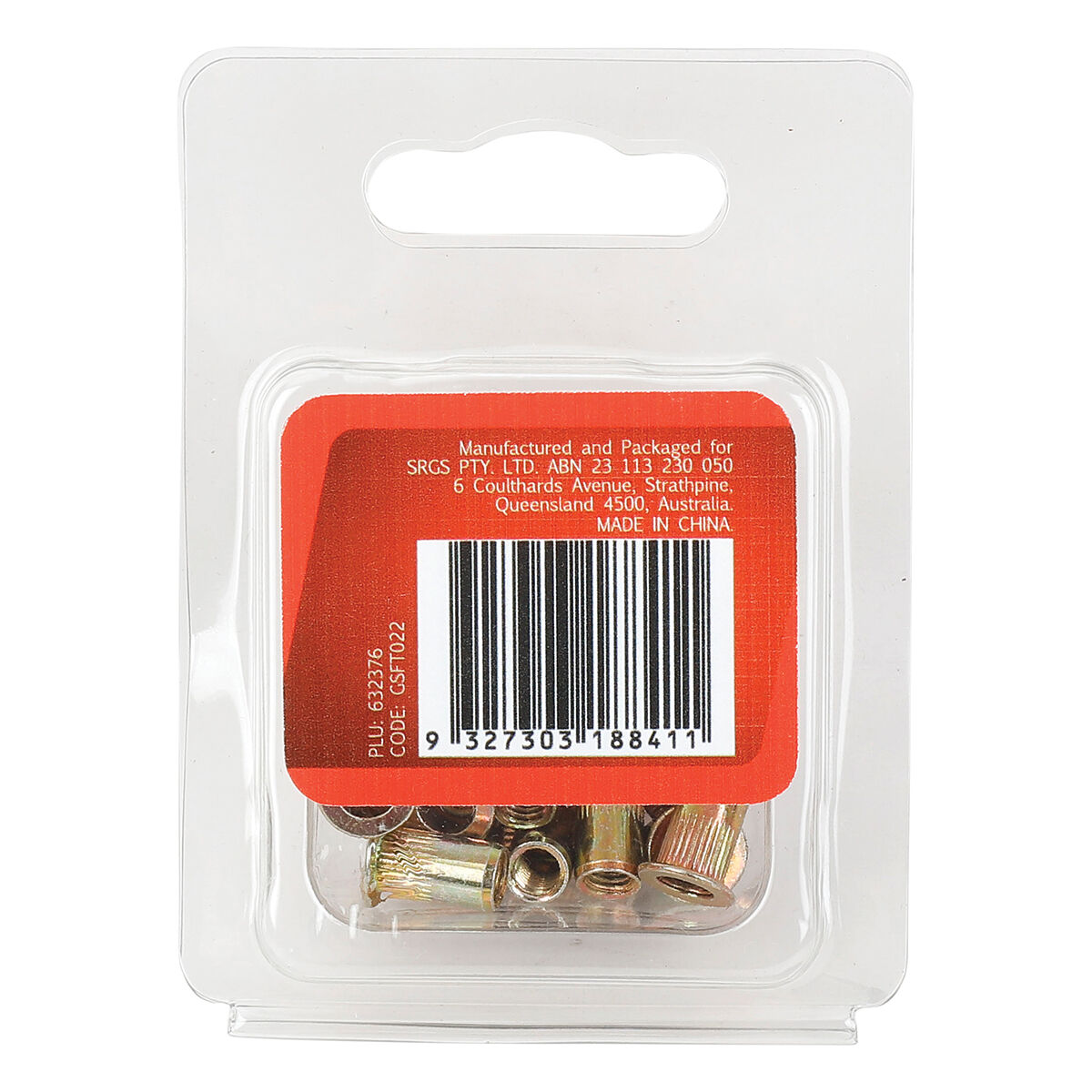

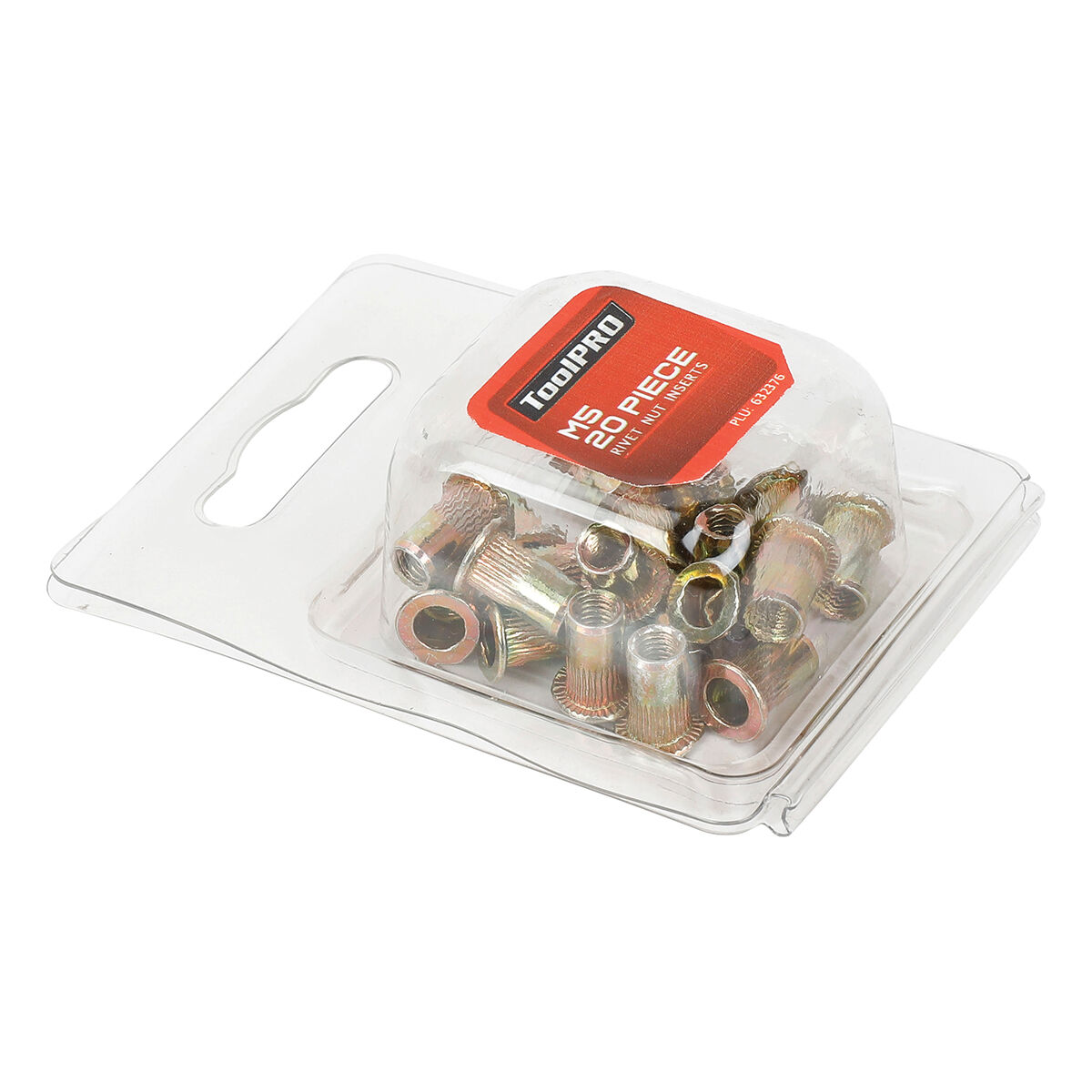

ToolPRO Rivet Nut Inserts M5 20 Piece
Details
https://www.supercheapauto.com.au/p/toolpro-toolpro-rivet-nut-inserts-m5-20-piece/632376.html
$4.99
$0.00
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. 632376
Additional Information
Product Info
Product Info
The ToolPRO Rivet Nut Inserts M5 20 Piece is a pack of threaded inserts designed for use with ToolPRO Light Duty and Heavy Duty rivet nut tools. Rivet nuts function like pop rivets but provide a permanent threaded fixing point, creating captive nuts in drilled holes where the surface is too thin to tap or rear access is impossible.
Match the M5 insert size to your application, equip the rivet nut tool with the appropriate mandrel, and apply to a suitably sized hole. The 20 piece quantity suits multiple applications or keeping spares on hand. Backed by a lifetime warranty.
Features
- Suited to use with ToolPRO Light Duty and ToolPRO Heavy Duty rivet nut tools
- Includes 20 M5 thread rivet nut inserts for multiple applications
- Create captive threaded nuts in drilled holes where surface is too thin to tap
- Function like pop rivets but provide a permanent threaded fixing point
- Suitable where rear access is impossible or impractical
- Lifetime Warranty
- Lifetime Warranty
Tech Spec
ToolPRO Rivet Nut Inserts M5 20 Piece
| Thread | M5 |
|---|---|
| Thread Pitch | 0.8mm |
| Grip Range | 0.5-2.5mm |
| Installed Height | 7.5mm |
| Head Diameter | 10mm |
| Body Diameter | 6.9mm (-0.1mm/+0.07mm) |
| Head Thickness | 1mm |
| Overall Length | 13mm |
| Hole Size | 7mm (+0.1mm) |
