The Renogy ShadowFlux 200W 12V N-Type Anti-Shading Solar Panel is designed to deliver reliable solar performance, even in challenging conditions where partial shading is unavoidable. Using advanced ShadowFlux technology, this panel helps maximise energy output when shadows fall across the surface, making it well suited to vehicle, caravan and off-grid installations where space and sunlight can be limited. High-efficiency N-type cells provide up to 25% conversion efficiency and include anti-hotspot protection to support consistent and stable power generation.
With a design that is approximately 7% smaller and 10% lighter than comparable panels, the ShadowFlux 200W panel allows for easier handling and installation in tighter spaces without compromising performance. Built for outdoor use, it features an IP67 rating to protect against water and dust ingress, offering dependable operation in harsh environments. Backed by a 5-year product warranty and a 25-year performance guarantee of 80% power output, this panel provides long-term confidence for your solar power setup.
Features
- ShadowFlux technology maximizes output under partial shading for efficient energy generation
- ShadowFlux technology maximizes output under partial shading for efficient energy generation

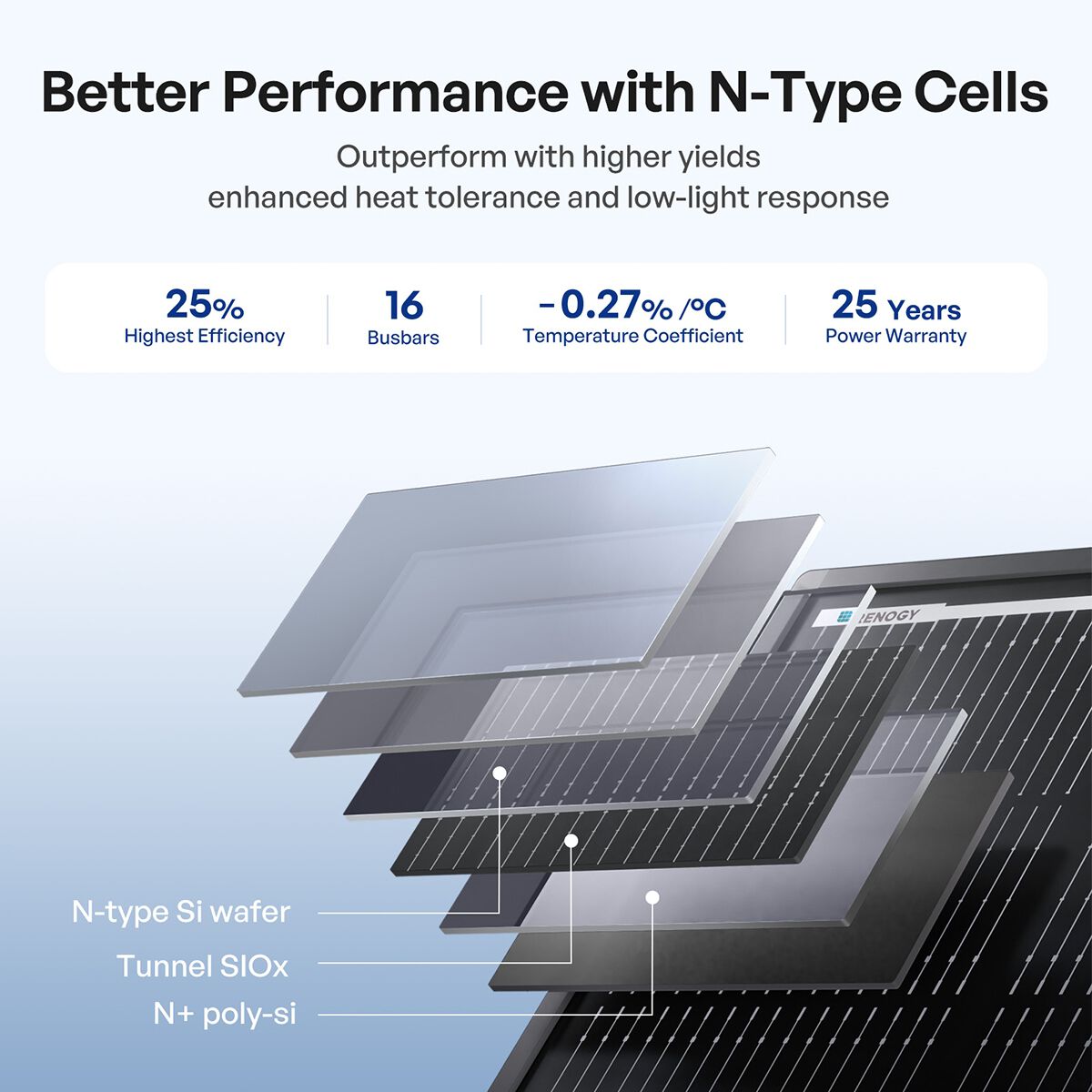

- N-type cells achieve up to 25% conversion efficiency with anti-hotspot protection

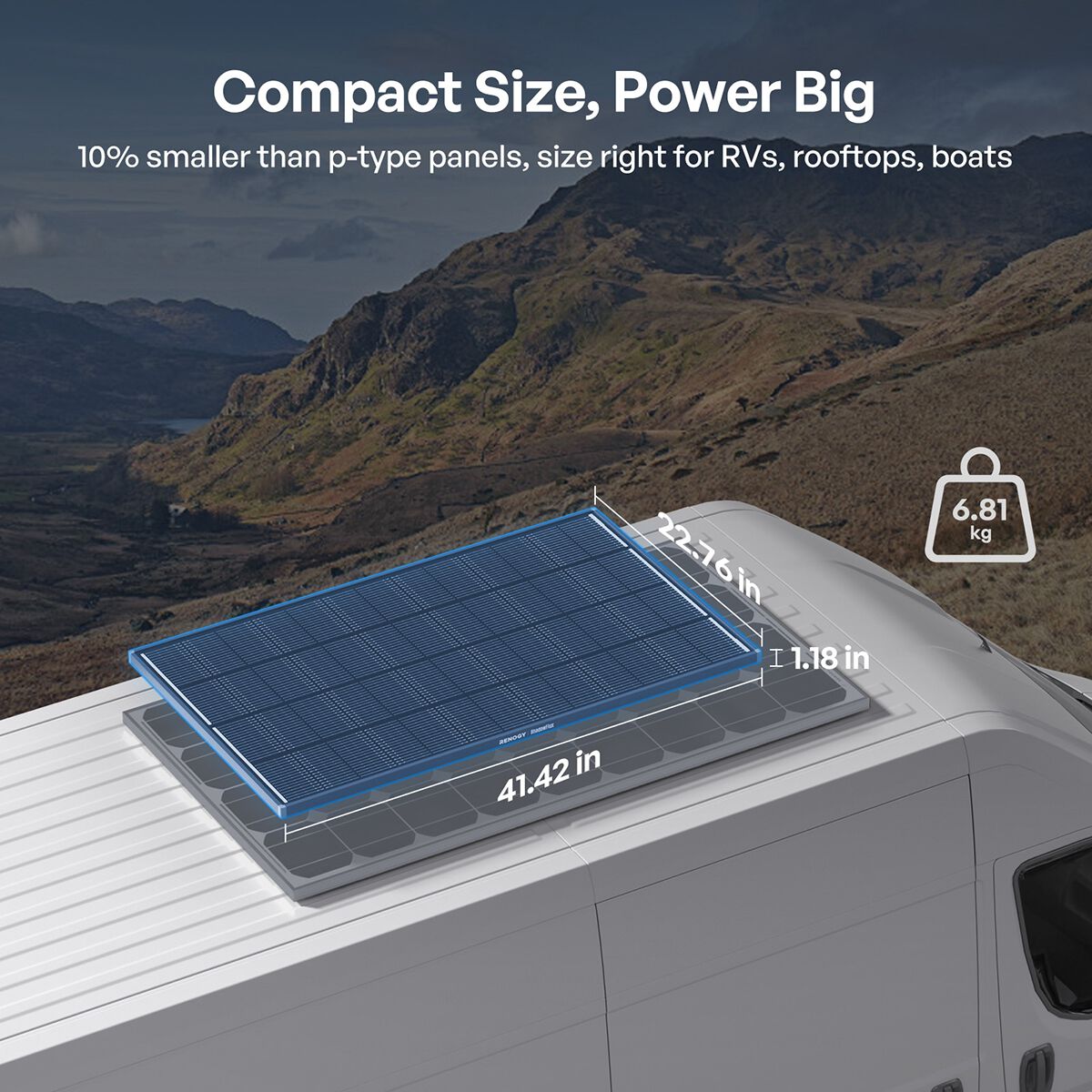

- 7% smaller and 10% lighter design enables easier installation in limited spaces

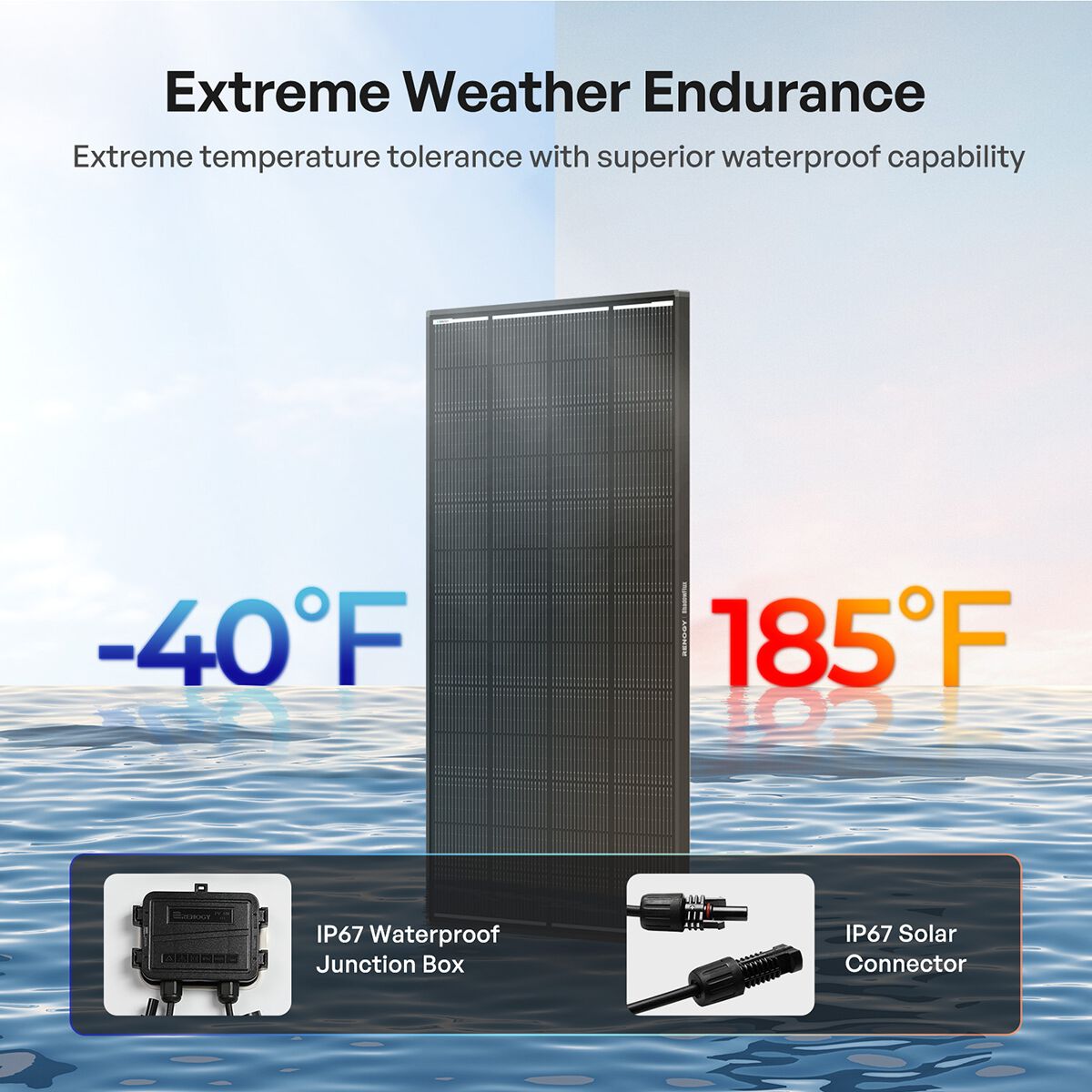

- IP67 rating provides reliable protection against water and dust, even in harsh outdoor conditions
- 5-Year Product Warranty with 25-Year Performance Guarantee (80% Power Output)
Tech Spec
| Max Power at STC | 200W |
|---|---|
| Open Circuit Voltage | 36.5V |
| Short Circuit Current | 6.86A |
| Optimum Operating Voltage | 31.3V |
| Optimum Operating Current | 6.38A |
| Operating Temperature | -40°F~185°F / -40℃~85℃ |
| Maximum System Voltage | 1000 VDC |
| Cell Type | N-Type Cell |
| Cell Efficiency | 0.25 |
| Busbar | 16 Busbar |

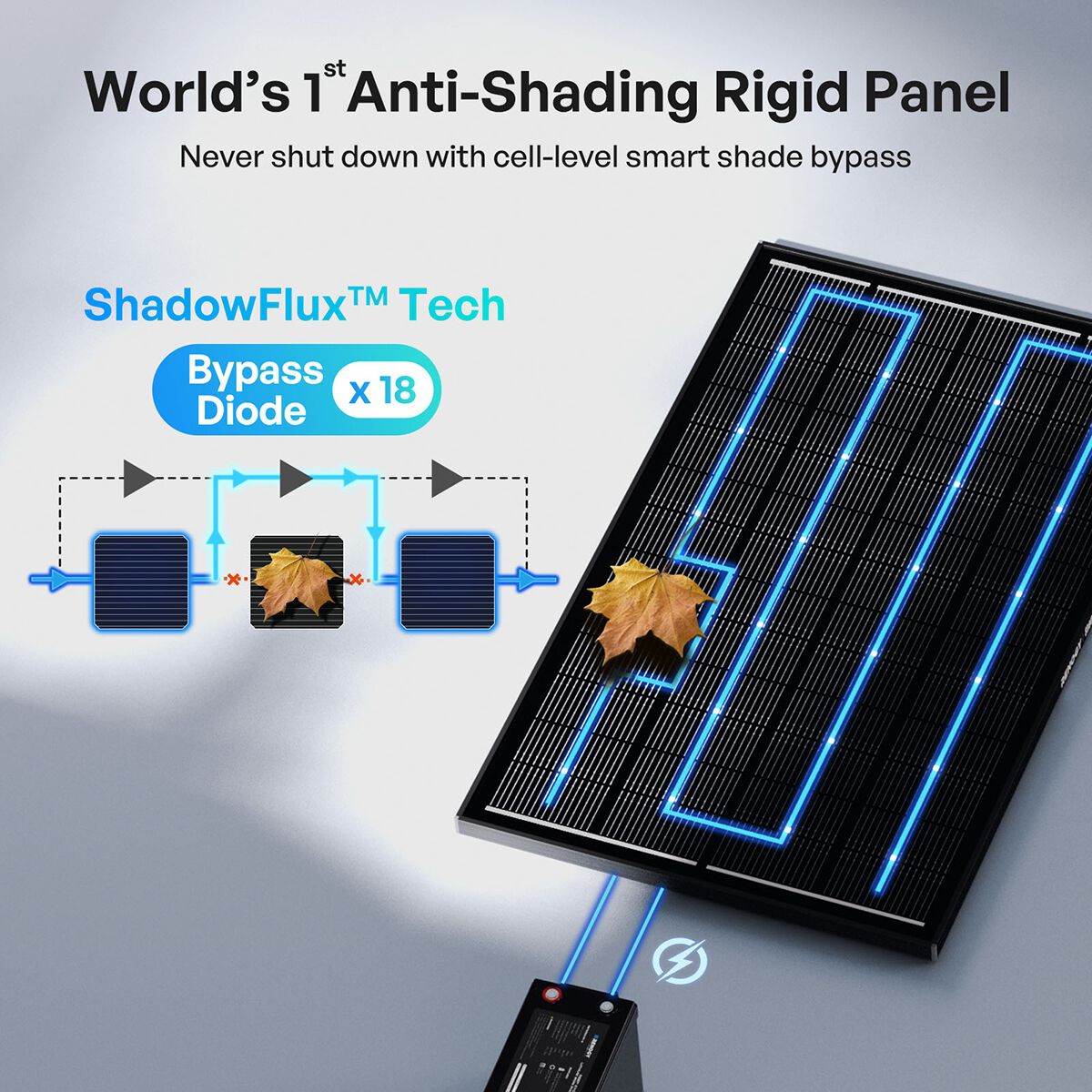

| Anti-shading Tech | Cell-level Shadow Management Tech |
| Maximum Series Fuse Rating | 15A |
| Weight | 10.81kg/23.83lb |
| Dimension | 49.69*30.08*1.18inch |
| Protection Rating | IP67 |
| Warranty | 5 Years |
