Product Info
Product Info

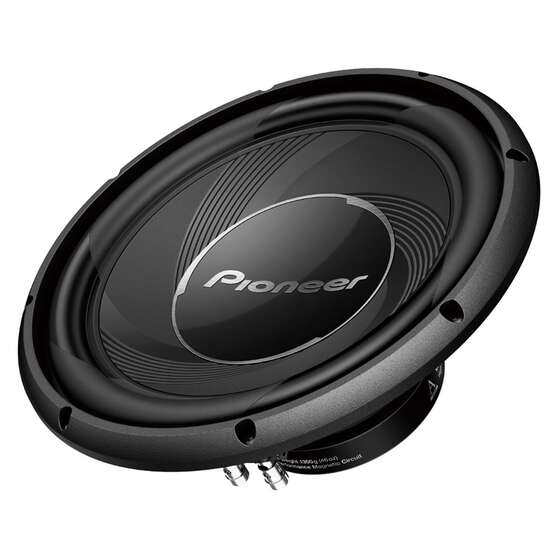

The Pioneer A-Series 12" Subwoofer Single 4 Ohm Voice Coil TSA30S4 is designed to match Pioneer's A-Series full-range loudspeakers for an affordable car audio upgrade. Combining a glass fibre and mica reinforced injection moulded polypropylene (IMPP) cone with a butyl rubber surround and polycotton/cotton dual spider, it maintains strength and linearity during high excursion for clear, controlled bass. The single 4 Ohm voice coil handles up to 1,400W of max power with 400W of continuous (RMS) handling, covering a frequency range of 22 Hz to 1.6 kHz at 87dB sensitivity.
Pioneer TSA30S4 subwoofer features a compact 136mm mounting depth, suiting shallower enclosure and under-seat installations. It is designed to pair with Pioneer's GM-A Series amplifiers for a matched in-car audio experience.
Features
- 1,400W max power with 400W nominal (RMS) handling for consistent bass output
- Single 4 Ohm voice coil simplifies amplifier matching
- Glass fibre and mica reinforced IMPP cone construction for rigidity and clarity
- Butyl rubber surround and polycotton/cotton dual spider add strength and linearity during high excursion
- Frequency range of 22 Hz to 1.6 kHz for deep, controlled bass
- 87 dB sensitivity for efficient power-to-volume conversion
- 136mm mounting depth suits shallower enclosure installations
- Designed to match Pioneer A-Series full-range loudspeakers and GM-A Series amplifiers
Tech Spec
| Driver Size | 12" |
|---|---|
| Continuous Power Handling (RMS) | 400W |
| Maximum Peak Power Handling | 1400W |
| Impedance | Single 4 Ohm Voice Coil |
| Woofer Composition | Glass fibre and mica reinforced Injection Molded Polypropylene (IMPP) |
| Woofer Surround | Butyl Rubber |
| Woofer Magnet Composition | Ferrite |
| Mounting Depth | 136mm |
| Sensitivity (1W/1m) | 87dB |
| Frequency Range | 22 Hz to 1.6 kHz |
