Austral Piston Set - PO1307 STD
Details
https://www.supercheapauto.com.au/p/austral-isuzu-4jh1t-piston-set/SPO1200493.html
$649.00
$0.00
Or 4 payments of
$162.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO1200493
Additional Information
Tech Spec

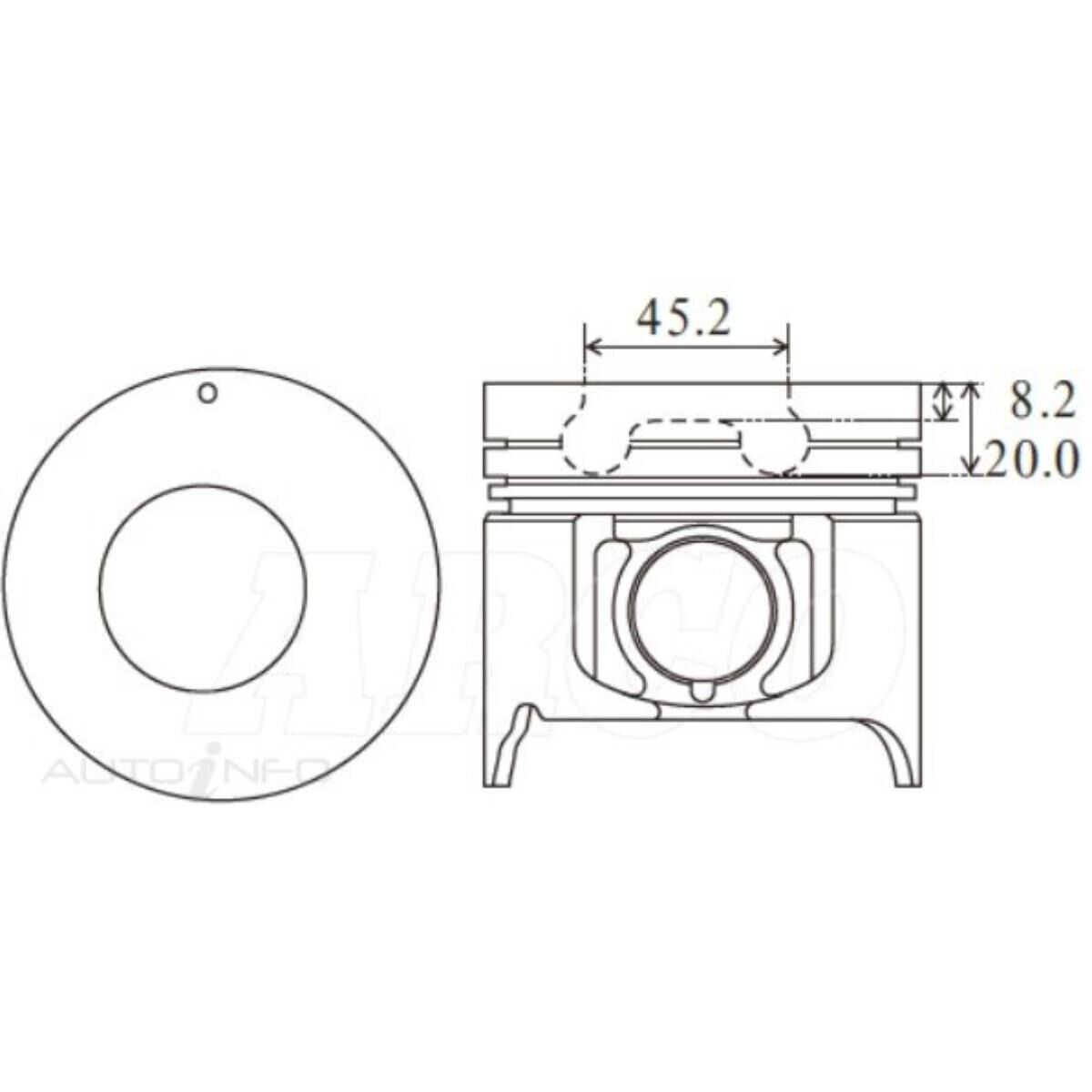

ISUZU 4JH1T 'PISTON SET'
| Head Type | Dish Top |
|---|---|
| Bowl Dia. | 45.2mm |
| Bowl Depth | 20.0mm |
| Top Of Combustion Bowl Mound to Piston Crown | 8.2mm |
| Compression Height | 49.90mm |
| O/Length | 88.9mm |
| Pin Size | 31.00mm x 76.00mm |
| Pin Type | Full Floating |
| Top Ring Width | 2.50mm |
| Second Compression Ring Width | 2.00mm |
| Oil Ring Width | 3.00mm |
| Use Ring Set | BR1307 STD |
