Aeroflow Universal EFI Fuel Delivery Kit AF66-40005
Details
https://www.supercheapauto.com.au/p/aeroflow-inline-efi-fuel-delivery-kit/SPO6387884.html
$729.00
$0.00
Or 4 payments of
$182.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO6387884
Additional Information
Product Info
Product Info

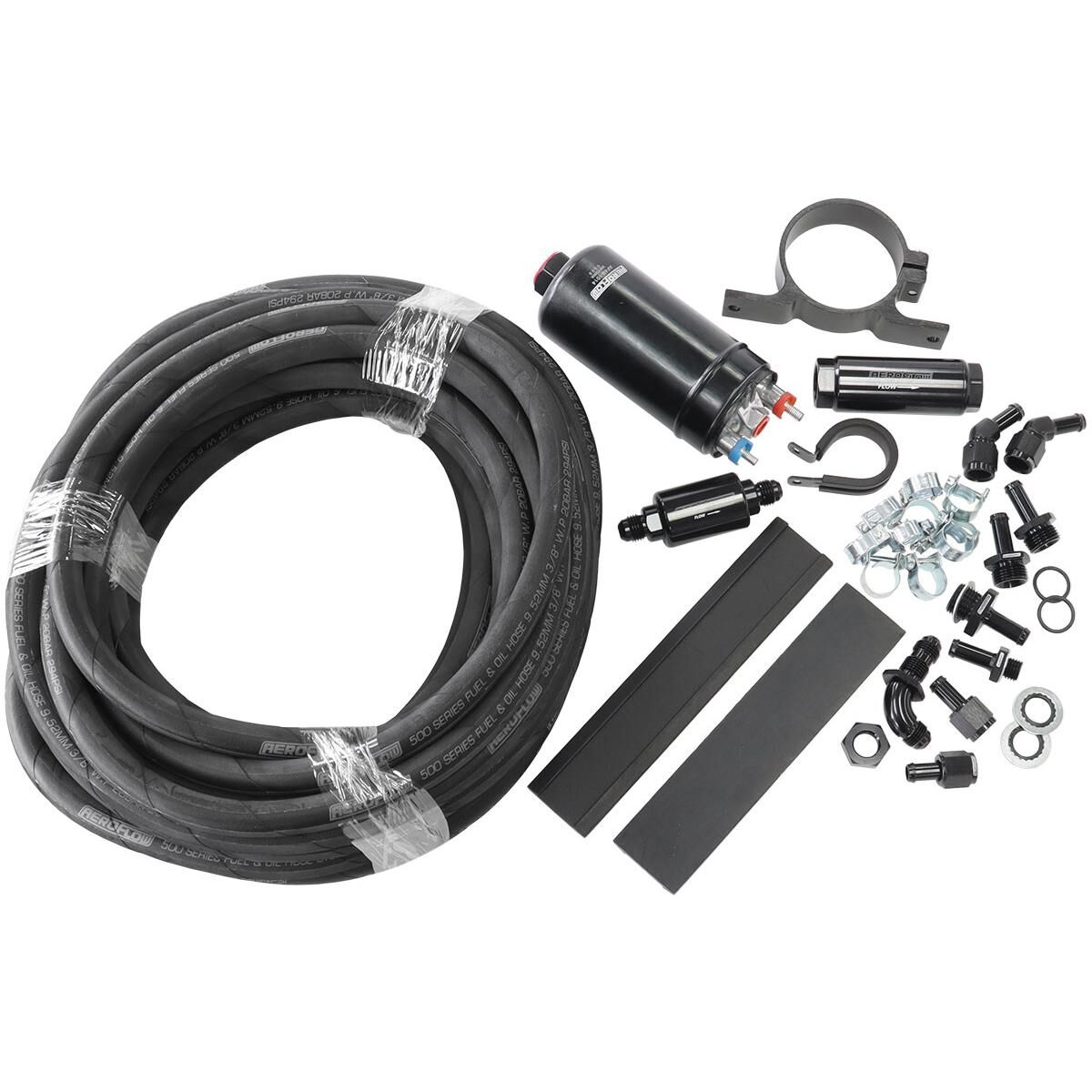

The Aeroflow Universal EFI Fuel Delivery Kit AF66-40005 supplies everything needed to feed an EFI throttle body, delivering enough fuel for up to 600HP. The kit includes an external inline fuel pump, a 100 micron pre-pump filter, a 30 micron after-pump filter, 15m of 500 series -6 rubber fuel hose and the brackets, clamps and barb adapters needed to plumb the system. A return line back to the fuel tank is required when running this pump.
Features
- Complete EFI fuel delivery kit supplies everything needed to feed an EFI throttle body
- External inline fuel pump (AF49-1014) supports up to 600 hp
- 100 micron pre-pump filter and 30 micron after-pump filter keep fuel clean
- 15m of 500 series -6 rubber fuel hose with 10 fuel line clamps for the full run
- Billet mounting bracket and P-clamp secure the pro filter and pump in place
- Includes a -6 90 degree bulkhead fitting, barb adapters and stat-o-seals for inlet and outlet connections
- Requires a return line to the fuel tank when running this pump
Tech Spec
Aeroflow Universal EFI Fuel Delivery Kit AF66-40005
| Fuel Pump Included | AF49-1014 external fuel pump |
|---|---|
| Maximum Horsepower Supported | 600HP |
| Pre-Pump Filter | 89mm (3-1/2") billet pro filter, 100 micron |
| After-Pump Filter | Billet filter, 30 micron |
| Fuel Hose | 15m (49.2ft) 500 series -6 (9.52mm / 3/8") rubber fuel hose |
| Fuel Line Clamps | 10 x EFI fuel line clamps |
| Bulkhead Fitting | 1 x -6 90 degree bulkhead with nut |
| Barb Adapters | 2 x -6 to 3/8" straight barb; 2 x -6 to 3/8" 45 degree barb; 2 x -8ORB to 3/8" straight barb (for pro filter) |
| Pump Inlet Fitting | 1 x M18 x 1.5mm to 3/8" straight barb |
| Pump Outlet Fitting | 1 x M12 x 1.5mm to 3/8" straight barb |
| Stat-O-Seals | 2 x 14mm (9/16") ID stat-o-seals |
| Mounting Hardware | Billet bracket to suit external fuel pump; billet P-clamp to suit pro filter |
