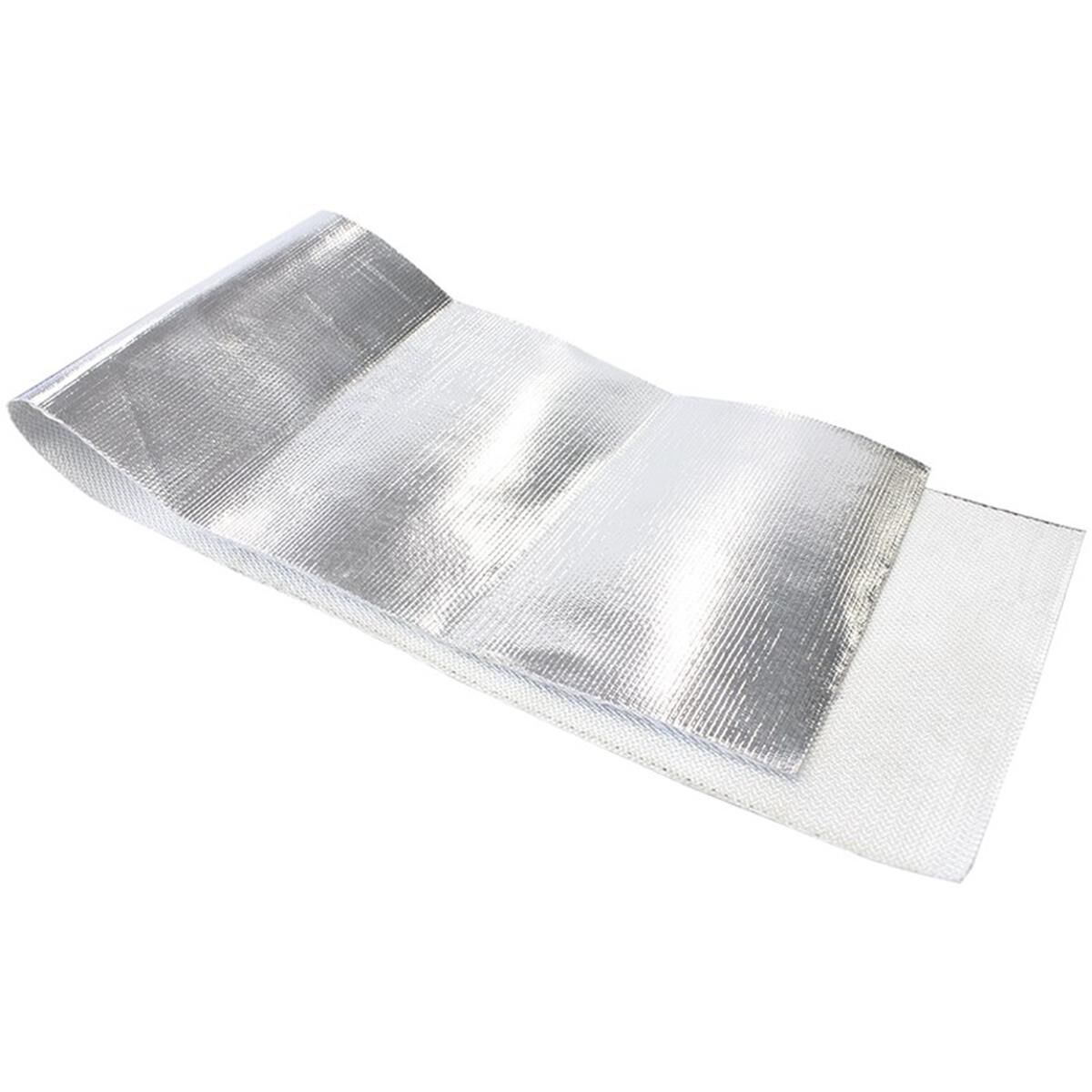

The Aeroflow Heat Barrier 20" x 12" Sheet AF91-6000 is a flexible aluminised heat shield sheet designed to reflect unwanted heat away from surfaces that need protection in the engine bay. The bright metallic surface withstands up to 1100°C (2000°F) of radiant heat and 650°C (1200°F) of direct heat, and can be trimmed to the exact size needed for the job. Installed with the metallic face toward the heat source it works as a heat shield, reflecting radiant heat, while turning the fabric side toward the heat source lets it retain warmth instead, with the metallic layer also acting as a barrier against fluid penetration.
This heat barrier measures 508mm x 305mm (20" x 12") in a silver finish and has minimal thickness for easy installation. It can be secured with Aeroflow stainless steel straps or simply riveted in place, making it a practical option wherever an adhesive-backed heat shield is not required.
Features
- Flexible aluminised surface reflects up to 1,100°C (2,000°F) radiant heat
- Withstands 650°C (1,200°F) of direct heat for demanding engine bay locations
- Reversible fit: metallic side faces the heat source for shielding, fabric side faces it for retaining heat
- Metallic surface acts as a barrier against fluid and oil penetration
- Minimal thickness allows for easy, low-profile installation
- Secures with Aeroflow stainless steel straps or can simply be riveted in place
- Trims easily to the exact size required for the application
- Silver finish sheet measuring 508mm x 305mm (20" x 12")
Tech Spec
| Material | Aluminised surface |
|---|---|
| Maximum Continuous Temperature Rating | 650°C (1,200°F) direct heat |
| Maximum Intermittent/Radiant Temperature | 1,100°C (2,000°F) radiant heat |
| Length | 508mm (20") |
| Width | 305mm (12") |
| Sheet/Roll Dimensions | 508mm x 305mm (20" x 12") sheet |
| Backing/Adhesive Type | Not adhesive backed; secures with stainless steel straps or rivets |
| Finish/Colour | Silver |
| Application/Suitable For | General heat shielding for surfaces exposed to radiant or direct heat, such as engine bay components |
