Aeroflow Steam Pipe 90 Deg 1-5/8" 1.5D Radius AF8513-1875
Details
https://www.supercheapauto.com.au/p/aeroflow-1-5-8-steam-pipe-90-deg-1.5d-radius-bend-turbo-manifold-exh/SPO10360680.html
$6.79
$0.00
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO10360680
Additional Information
Product Info
Product Info

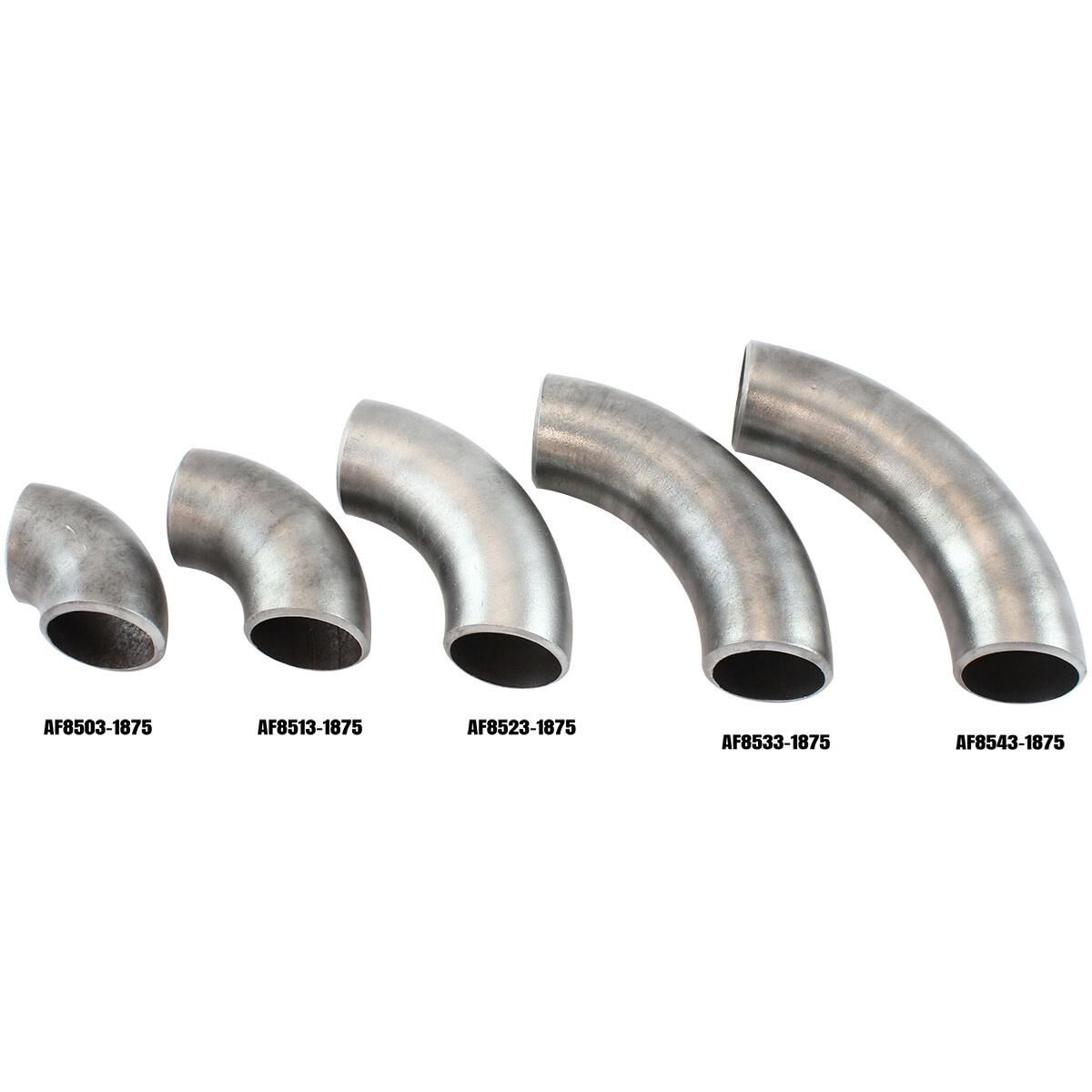

The Aeroflow Steam Pipe 90 Deg 1-5/8" 1.5D Radius AF8513-1875 is a carbon steel pipe designed for fabricating custom turbo manifolds, crossover pipes and wastegate extensions. It features a 41mm (1-5/8") inside diameter, a 3mm wall thickness and a 90 degree bend with a 1.5D radius for smooth, gradual direction changes that reduce pressure loss and turbulence. The pipe is sandblasted to a raw finish, so it can be welded straight out of the box without further preparation.
Features
- 41mm (1-5/8″) inside diameter suits turbo manifold and crossover pipe fabrication
- 3mm wall carbon steel construction withstands high temperature exhaust gases
- 90 degree bend with 1.5D radius smooths gas flow and reduces turbulence
- Sandblasted raw finish is ready to weld straight out of the box
- 50mm leg length suits custom manifold and wastegate extension fabrication
- Smooth inner surface reduces pressure loss across the bend
Tech Spec
Aeroflow Steam Pipe 90 Deg 1-5/8" 1.5D Radius AF8513-1875
| Diameter (I.D.) | 41mm (1-5/8") |
|---|---|
| Wall Thickness | 3mm (1/8") |
| Leg Length | 50mm |
| Bend Angle | 90° |
| Bend Radius | 1.5D |
| Material | Carbon Steel |
| Finish | Sandblasted raw finish |
