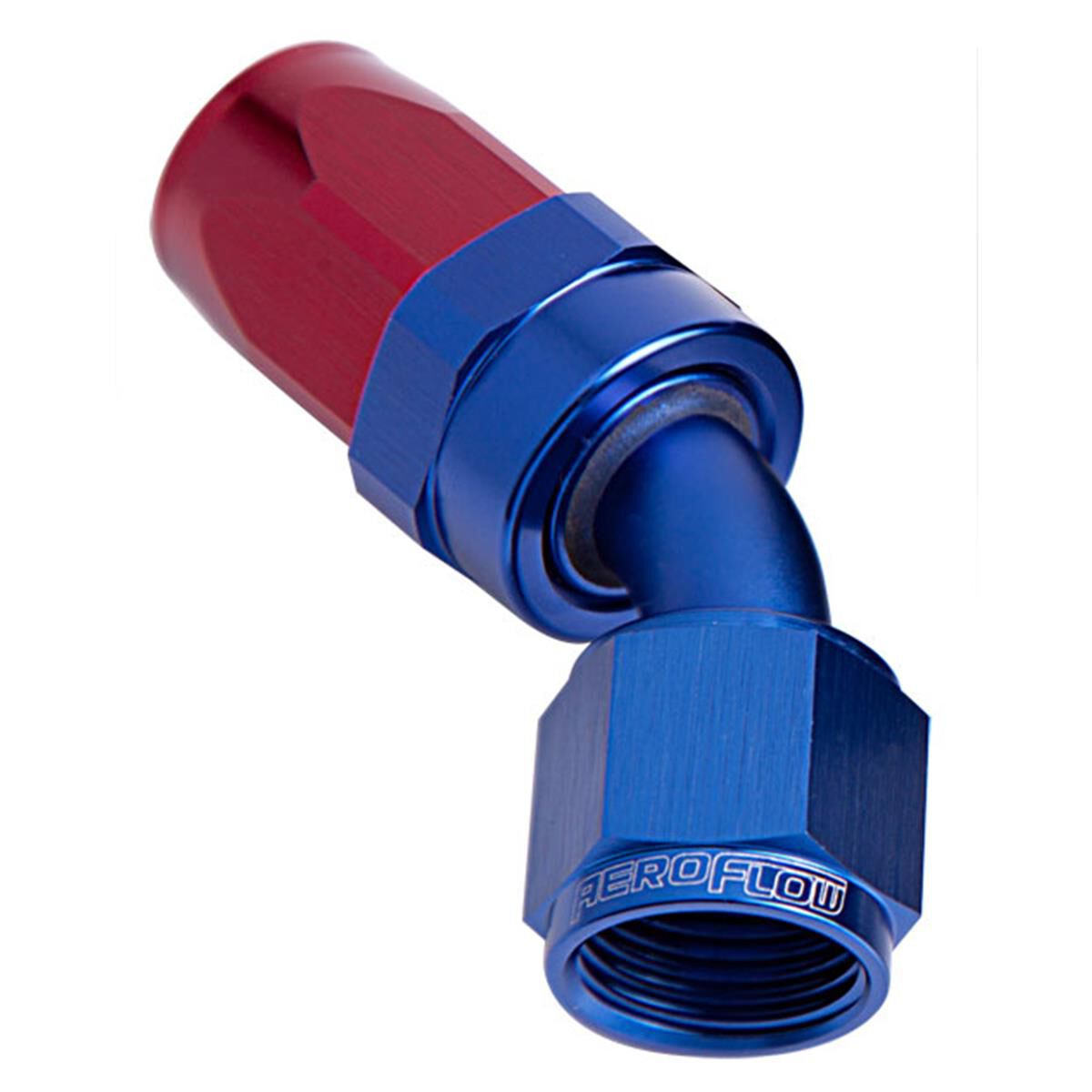

Aeroflow 100 Series Swivel Taper 45° Hose End -16AN AF102-16
Details
https://www.supercheapauto.com.au/p/aeroflow--16an-taper-series-45-degree/SPO3815177.html
$102.99
$0.00
Or 4 payments of
$25.75
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO3815177
Additional Information
Product Info
Product Info
The Aeroflow 100 Series Swivel Taper 45° Hose End -16AN AF102-16 suits fuel, cooling, vacuum and oil system plumbing. Machined from 6061 T-6 aluminium, it uses a hex taper design that increases the holding area for stronger, easier assembly, and double Viton O-ring seals provide leak free sealing across a wide range of fluids.
Aeroflow 100 Series fittings feature a double anodised, hand polished finish for corrosion resistance and consistent colour matching, finished here in Blue/Red. This -16AN hose end suits 100 and 450 Series hose for custom fuel, oil and coolant line builds.
Features
- 45° swivel taper hose end suits -16AN fittings for fuel, cooling, vacuum and oil systems
- Machined from 6061 T-6 aluminium for superior thread strength
- Hex taper design increases holding area for greater strength and easier assembly
- Double Viton O-ring seals deliver leak free performance across a wide range of fluids
- Double anodised, hand polished finish resists corrosion and keeps colour consistent
- Blue/Red finish
- Suits 100 and 450 Series hose
Tech Spec
Aeroflow 100 Series Swivel Taper 45° Hose End -16AN AF102-16
| AN Size | -16AN |
|---|---|
| Colour | Blue/Red |
| Angle | 45° |
| Body Material | 6061 T-6 Aluminium |
| Seal Material | Double Viton O-rings |
| Suits Hose | 100 & 450 Series Hose |
