Product Info
Product Info

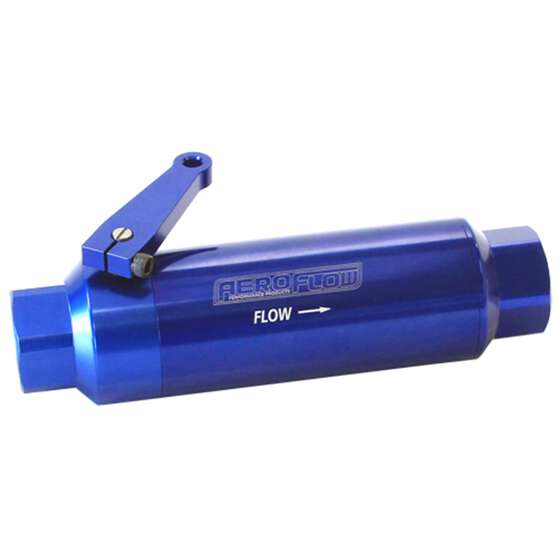

The Aeroflow 60 Micron Pro Filter with Ball Valve Blue AF66-2051 is an inline fuel filter for high-performance petrol, E85 and methanol fuel systems. CNC-machined from 6061-T6 aircraft aluminium, the housing carries a 60 micron stainless steel element that is fully reusable and washable, while an internal magnet traps fine metallic particles before they reach the fuel system. The integrated ball valve lets you shut off fuel flow at the filter for servicing without draining or disconnecting lines, and -12 ORB ports on both ends keep connections sealed under pressure.
Measuring 140mm long by 50.8mm in diameter, this Pro Filter suits fuel systems built for 200 to 2,700-plus horsepower, making it a common choice on EFI and carburettor applications alike. The anodised blue finish is one of three colour options in the Aeroflow Pro Filter with Ball Valve range, alongside black and silver.
Features
- 60 micron stainless steel element is reusable and washable for easy maintenance
- Integrated ball valve allows fuel flow shut-off without disconnecting lines
- -12 ORB ports deliver a positive, leak-free seal at each connection
- CNC-machined from 6061-T6 aircraft aluminium for a rigid, lightweight housing
- Anodised end caps are compatible with E85 and methanol fuels
- Internal magnet captures fine metallic particles for extra protection
- Compact 140mm x 50.8mm body suits applications up to 2,700 hp
- Blue anodised finish
Tech Spec
| Filter Type | Inline |
|---|---|
| Fuel Type | Petrol, E85, Methanol compatible |
| Filtration Media | Stainless steel reusable/washable element |
| Micron Rating | 60 Micron |
| Inlet/Outlet Thread or Port Size | -12 ORB |
| Overall Height | 140mm (5-1/2") |
| Outer Diameter | 50.8mm (2") |
| Housing Material | 6061-T6 aircraft aluminium, CNC-machined |
| Shut-Off Valve | Integrated ball valve for fuel flow shut-off |
| Finish | Blue anodised |
| Replacement Element | AF59-2052 (60 Micron Stainless Steel element) |
