DERALE
Derale Adjustable Fan Control Thermostat Thread In Probe - 16749
Details
https://www.supercheapauto.com.au/p/derale-adjustable-fan-control-thermostat-thread-in-probe/SPO2056824.html
Now
$219.74
^
Was
$292.99
Don't Miss Out - Sale Ends
08/06/26
$0.00
Or 4 payments of
$54.94
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO2056824
Additional Information
Product Info
Product Info
Derale Dual Electric Fan Adjustable Thread In Controller Thermostat 150°-240°F 25amp 16749
This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a water jacket 3/8" NPT thread-in probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.
This controller Will Not Work using the following 2-speed O.E. Electric Fans: Dodge Viper, Ford Taurus, Ford Contour, or Lincoln Mark VIII. These fans exceed the amperage & functionality capabilities of this fan controller.
Features:
- Adjustable turn-on temperature from 150-240°F
- Turn-off temperature is preset at 10°F below turn-on temperature

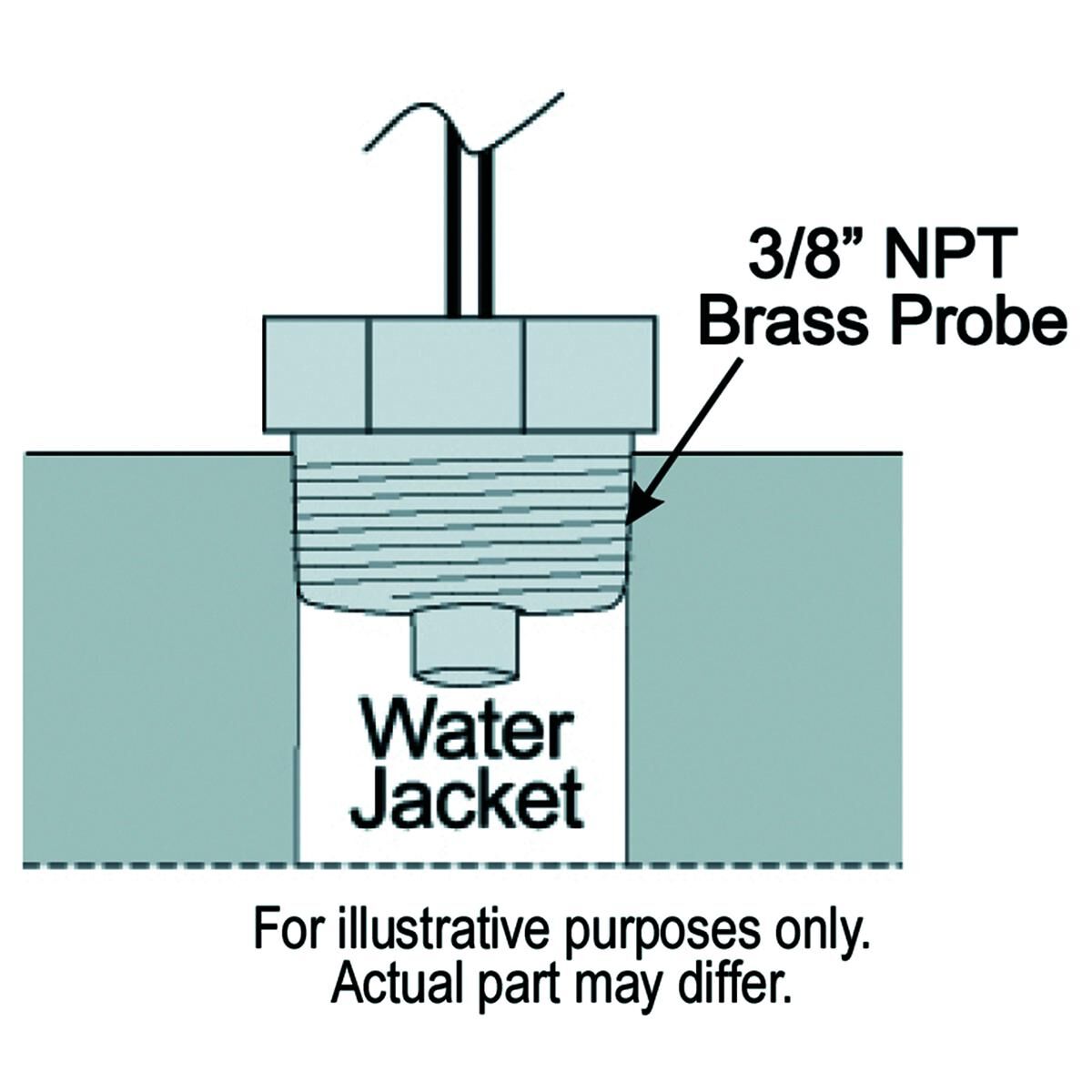

- Thread in 3/8" NPT temperature sensor
- Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw - operates a single fan or two fans with a combined draw of 25 amps or less
- AC override circuit included
- Ground circuit relay
- Replacement 3/8" NPT sensor part number 16750
- For a push-in temperature probe sensor option see Derale part number 16759
Features
- Adjustable turn-on temperature from 150-240°F
- Turn-off temperature is preset at 10°F below turn-on temperature
- Thread in 3/8" NPT temperature sensor
- Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw - operates a single fan or two fans with a combined draw of 25 amps or less
- AC override circuit included
- Ground circuit relay
- Replacement 3/8" NPT sensor part number 16750
- For a push-in temperature probe sensor option see Derale part number 16759
