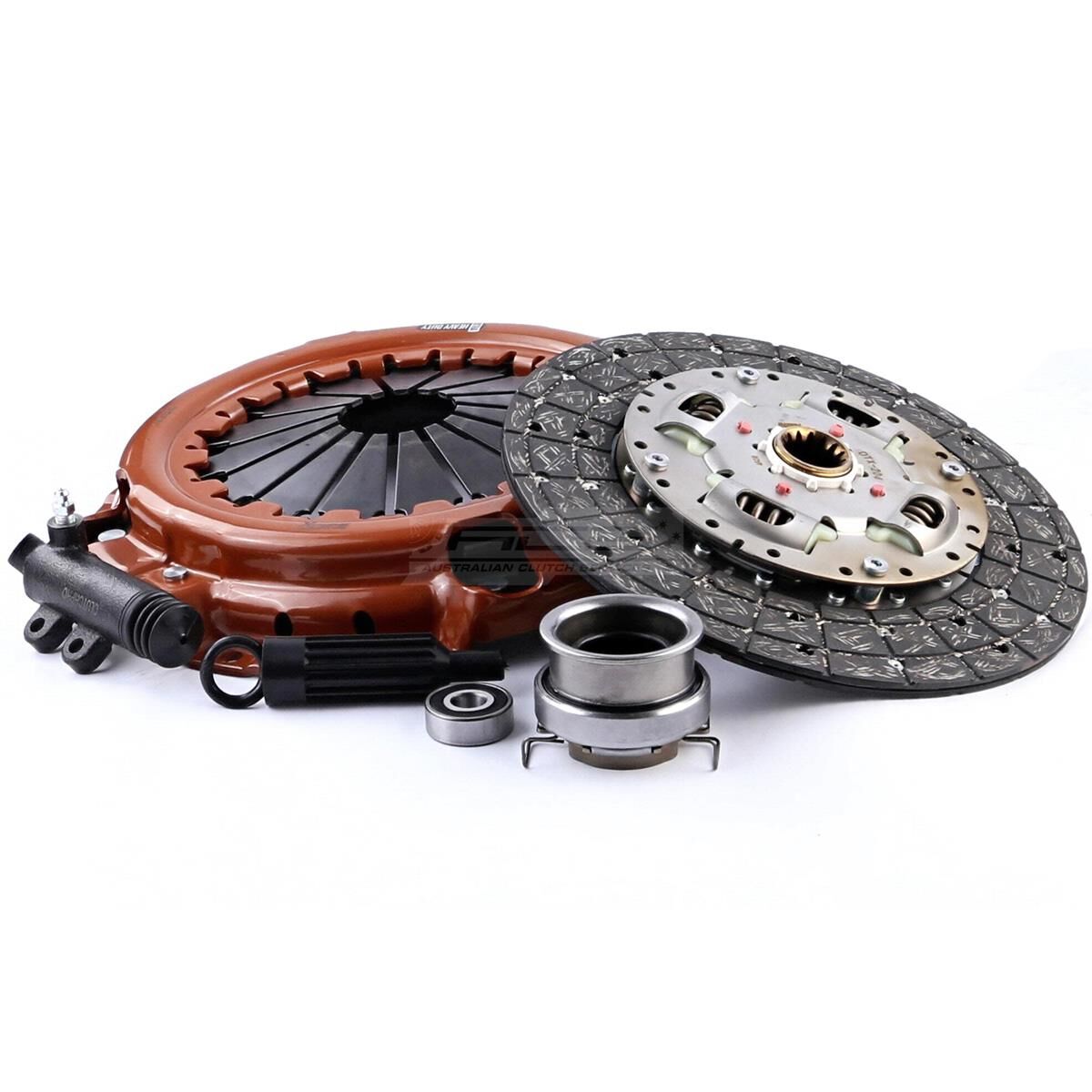

Xtreme Outback Extra Heavy Duty Clutch Kit - Sprung Organic, Includes Slave Cylinder, KTY30094-1AX
Details
https://www.supercheapauto.com.au/p/xtreme-kit-xhd-toyota-hdj-inc-s-c/SPO4600580.html
$1,399.00
$0.00
Or 4 payments of
$349.75
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO4600580
Additional Information
Product Info
Product Info
The stage 1X Extra Heavy Duty Clutch Upgrade from Xtreme Outback is designed to provide the ultimate solution for highly tuned vehicles necessitating a significant increase in torque capacity but still requiring driveability for street applications. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 Series Kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories.
The Xtreme Outback range of heavy duty clutch upgrades has been specifically designed and engineered to provide increased clamping force for improved torque holding capability. As a division of Australian Clutch Services, Xtreme Outback takes over 30 years of experience in the Australian clutch market as well as an extensive research and development process to engineer clutch upgrades for everything from daily driven 4x4 vehicles to dedicated rally applications. With a variety of stages and options available, the Xtreme Outback range is ideal for those looking for the highest quality and performance for their 4x4.
Features
- Extra Heavy Duty Clutch Upgrade
- Designed for vehicles that have been tuned for increased torque
- Engineered and tested for driveability in daily driven vehicles
- Kit includes extra heavy duty pressure plate, friction disc and slave cylinder
- Kit includes extra heavy duty pressure plate, friction disc and slave cylinder
Tech Spec
KIT XHD TOYOTA HDJ inc S/C
| Flywheel Step (mm) | +0.5mm |
|---|---|
| Clutch Disc Diameter (mm) | 300mm |
| Clutch Disc Spline Count | 14 |
| Clutch Disc Spline Diameter (mm) | 32.0mm |
| Disc Type | Sprung |
| Friction Material | Organic |
| Stage | 1 |
| Recommended Use | Street / Offroad / Towing |
| Clamping Force % Increase | 58% |
| Torque (Nm / ftlbs) Inc FOS | 750 / 550 |
| Spigot Bush/Bearing Included | Yes |
| Aligning Tool Included | Yes |
| Spline Grease Included | Yes |
| Note | Includes Slave Cylinder |
| Weight (kg) | 16.0 kg |
