Austral Piston Set - P1018B STD
Details
https://www.supercheapauto.com.au/p/austral-toyota-1kd-ftv-piston-ring-assy/SPO3679774.html
$1,149.00
$0.00
Or 4 payments of
$287.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
- Instant approval online
Pay later, from $10 per week with
Own it now, pay later
- For everyday spending up to $8,000
- Nothing to pay today
- Interest free always
- Flexible repayments
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO3679774
Additional Information
Tech Spec

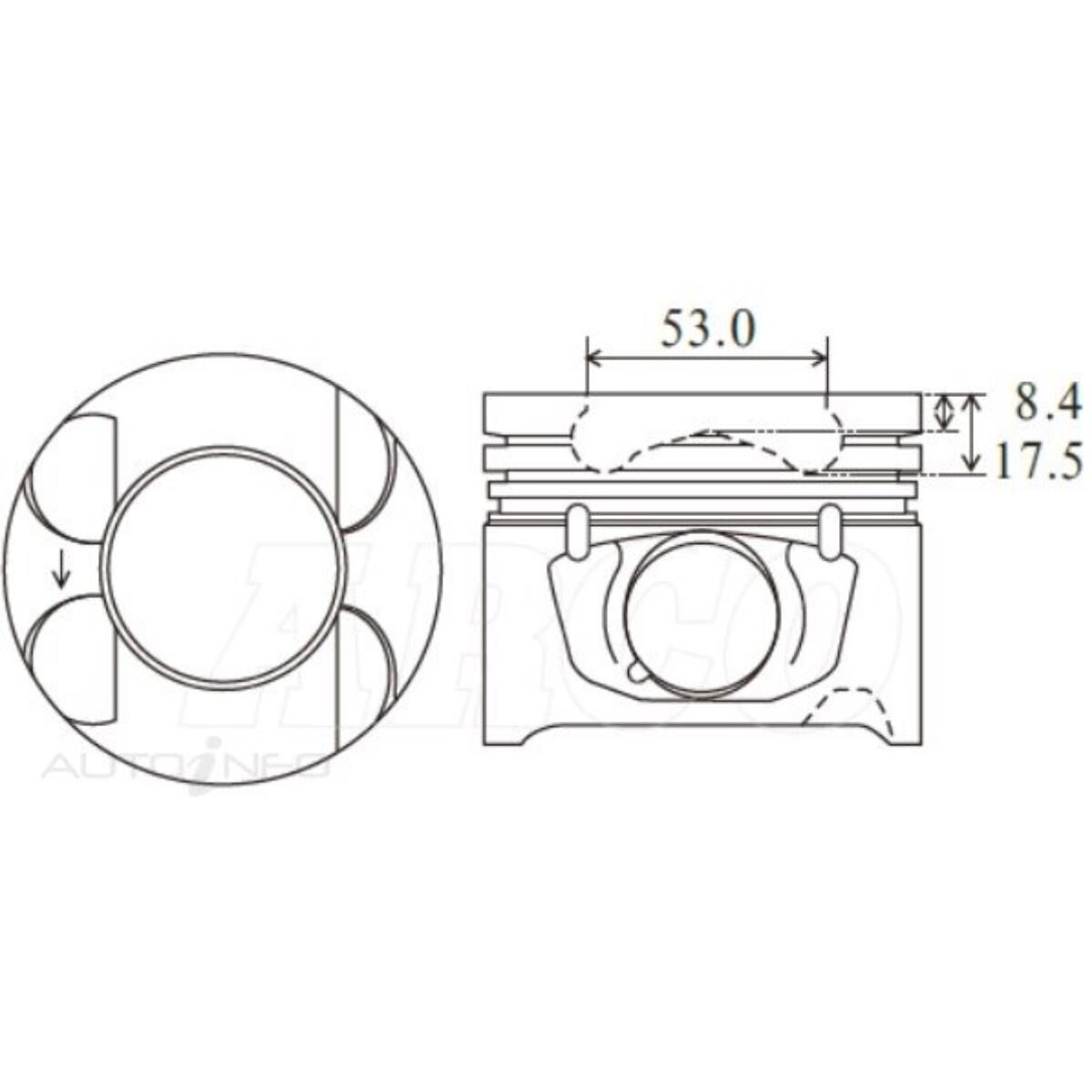

TOYOTA 1KD-FTV 'PISTON/RING ASSY'
| Head Type | Dish Top with 4 Valve Reliefs |
|---|---|
| Bowl Dia. | 53.00mm |
| Bowl Depth | 17.50mm |
| Top Of Combustion Bowl Mound to Piston Crown | 8.40mm |
| Compression Height | 49.60mm |
| O/Length | 78.50mm |
| Pin Size | 34.00mm x 73.00mm |
| Pin Type | Full Floating |
| Top Compression Ring Width | 2.00mm Half Keystone |
| Second Compression Ring Width | 1.50mm |
| Oil Ring Width | 3.00mm |
| Ring Set Included | CR1018 STD |
